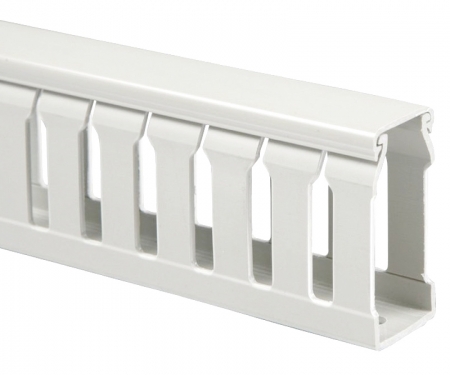

Standard Open Slot Wire Duct

6.5' Long - Numerous Widths & Heights - 4 Colors Available

Standard Open Slot Wire Duct Features

  • Each Wire Duct Is 6.5’ in Length
  • Lids Included
  • 0.79" slot pitch
  • 0.31" slot width
  • Service Temperature: +5° to +140° (-15° to +60°)
  • Standard mounting base slots to DIN 43659

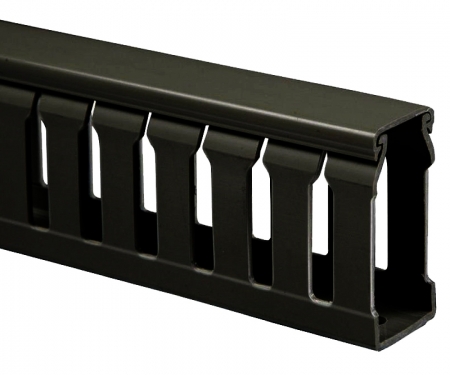

  • Standard Colors: White, Black or Gray (RAL 7030)

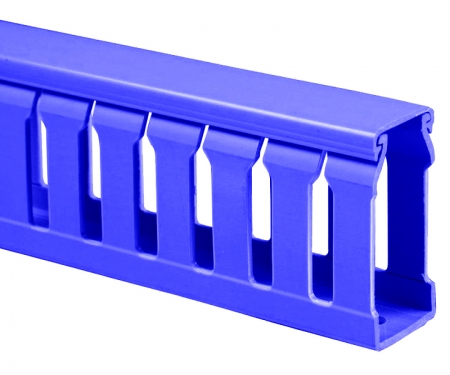

    Blue is offered for intrinsically safe wiring applications
  • Approvals: UL, CSA & Lloyds Register
  • RoHS compliant
  • Composed of lead free material
Click for More Details or Description

Wire Duct Lids Included

Product Details

Open Slot wiring ducts are manufactured with wide fingers that provide greater sidewall rigidity, giving additional cable support and allowing terminated wires to be re-routed easily. The restricted slot design retains wires in the slot for fast and easy wire installation or removal.

The open slot construction allows cables to be inserted during wiring, and the lid cover can be slid or snapped into place after wiring is complete. When necessary, the slot 'fingers' can be removed to accommodate larger cables.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Material Self Extinguishing PVC
Service Temperature Range -15°C to +60°C
Flammability UL94 V-0 Rated Material
Standards Base slots to DIN 43659. CE, RoHS, UL E161178A
