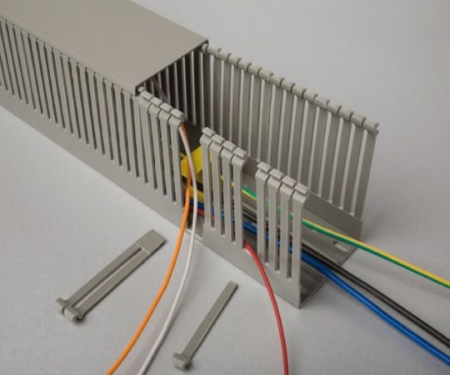

Canalplast® Narrow Slot Wire Duct

High Quality Brand Name Wire Duct - 1" to 5" Sizes

Canalplast® Narrow Slot Wire Duct Features

  • Lids Included
  • Self extinguishing rigid PVC Class 1 (UL94-VO)
  • Wire ducts with 4mm slots
  • Non-slip cover with exclusive cover design with maximum grip
  • Color: Grey
  • Case Includes Non-Slip Covers
Click for More Details or Description

Wire Duct Lids Included

Product Details

Designed for terminal block and Din component applications with higher number of entries into the duct. Lead free.

  • Smooth wire entry allows for quick insertion of wires
  • Built-in wire retainer - double restricted slots on some sizes
  • Smooth fingers will not injure the installer or damage cables
  • Staggered mounting hole pattern for use in cabinets which are designed to these standards
  • Double scoreline allows easy removal of wall section or individual fingers by hand without the use of tools
  • Non-slip cover with exclusive cover design with maximum grip
  • RoHS Certified - Lead Free
  • Manufactured in 2m lengths


Designed for terminal block and Din component applications with higher number of entries into the duct. Staggeredmounting hole pattern for use in cabinets which are designed to these standards. Double scoreline allows easy removal of wall section or individual fingers by hand without the use of tools

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Canalplast Open Slot Wiring Duct



Specifications:

  • Built-InRail -Allows quick installation of accessories without the need for additional hardware; time and money saver.
  • Sold in standard carton quantities.
  • Non-SlipCover -Exclusive flush cover design with maximum grip.

Technical informations:

  • Cable holder ducts cover at dap joint included, vertical slits.
  • Self-extinguishing rigid PVC Class 1 (UL94-VO).
  • Size from 15×17 mm to 200×100 mm. Lenght: 2 m
  • Colour: Grey RAL 7030. Available on request and for quantities to be agreed: Blue and White
  • Tipo E: slot 8 mm, finger 12 mm and step 20 mm
  • Tipo E/4: slot 4 mm, finger 6 mm and step 10 mm
  • Tipo ED: slot 5 mm, finger 7,5 mm and step 12,5 mm
  • Tipo EDGE: slot 4 mm, finger 6 mm and step 10 mm
