Kable Kontrol® 2:1 Viton Heat Shrink Tubing
Flexible & High Solvent Resistance | MIL-DTL-23053/13 Compliant
0.0 / 5
Kable Kontrol® 2:1 Viton Heat Shrink Tubing Features
- Premium Fluoro-Elastomer Construction: Delivers exceptional resistance to heat, fuels, oils, and corrosive fluids.

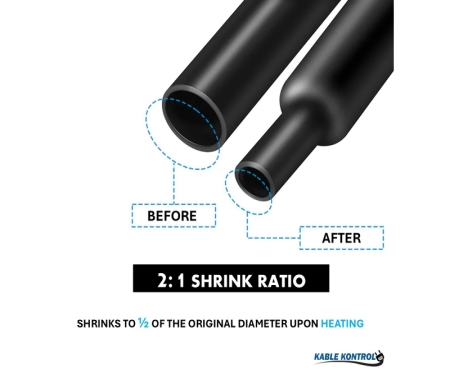

- 2:1 Shrink Ratio: Provides a secure, uniform fit over irregular shapes and components.
- Extreme Temperature Performance: Continuous operating temperature range from -55°C to 200°C (-67°F to 392°F).
- Outstanding Fluid & Chemical Resistance: Withstands exposure to aggressive automotive, industrial, and aerospace fluids.
- Flame Retardant: Enhances safety in high-risk electrical and mechanical environments.
- Highly Flexible After Recovery: Maintains elasticity and durability without cracking or hardening.
- Fully Shrinks at 175°C: Ensures fast, reliable installation.
- MIL-23053/13 Compliant: Suitable for military and aerospace-grade applications.
Kable Kontrol® 2:1 Viton Heat Shrink Tubing is a high-performance fluoro-elastomer tubing engineered for demanding environments where extreme temperatures, aggressive fluids, and long-term reliability are critical. This heat shrink tubing is designed to provide outstanding resistance to fuels, oils, hydraulic fluids, solvents, and corrosive chemicals, making it ideal for use in harsh electronic and mechanical systems. With a 2:1 shrink ratio, the tubing conforms tightly to wires, cables, and components, delivering excellent insulation, strain relief, and environmental protection. It remains highly flexible even after shrinking and maintains performance across a wide operating temperature range from -55°C to 200°C (-67°F to 392°F). The tubing is flame retardant, easy to stamp or mark, and meets MIL-23053/13, ensuring suitability for military and aerospace applications where compliance and durability are essential.
Common Uses:
- Automotive wire harnesses exposed to fuels, oils, and high temperatures
- Aerospace and avionics wiring protection
- Military electronic systems and defense equipment
- Industrial control panels and high-temperature cabling
- Fuel system and hydraulic line insulation
- Sensor, connector, and terminal protection in harsh environments
- Electrical insulation requiring chemical and flame resistance
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Property | Test Method | Standard | Typical Performance |
| Tensile Strength(MPa) | ASTM D2671 | ≥8.5 | 10 |
| Elongation(%) | ASTM D2671 | ≥250 | 300 |
| Tensile Strength after aging (MPa) | Ul224 158℃X168hr | ≥7.3 | 8.5 |
| Elongation after aging(%) | Ul224 158℃X168hr | ≥200 | 250 |
| Dieletric strength(kV/mm) | IEC 60243 | ≥15 | 17.5 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1X109 | 2.5X109 |
| Flammability | Ul224 VW-1 | Pass | Pass |

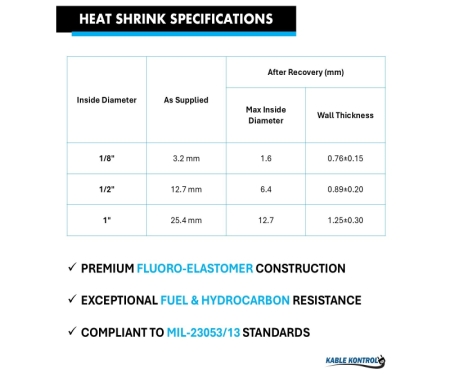

| Inside Diameter | As Supplied | After Recovery (mm) | |
| Max Inside Diameter | Wall Thickness | ||
| 1/8" | 3.2 mm | 1.6 | 0.76±0.15 |
| 1/2" | 12.7 mm | 6.4 | 0.89±0.20 |
| 1" | 25.4 mm | 12.7 | 1.25±0.30 |
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Kable Kontrol® 2:1 Viton Heat Shrink Tubing is a high-performance fluoro-elastomer tubing engineered for demanding environments where extreme temperatures, aggressive fluids, and long-term reliability are critical. This heat shrink tubing is designed to provide outstanding resistance to fuels, oils, hydraulic fluids, solvents, and corrosive chemicals, making it ideal for use in harsh electronic and mechanical systems. With a 2:1 shrink ratio, the tubing conforms tightly to wires, cables, and components, delivering excellent insulation, strain relief, and environmental protection. It remains highly flexible even after shrinking and maintains performance across a wide operating temperature range from -55°C to 200°C (-67°F to 392°F). The tubing is flame retardant, easy to stamp or mark, and meets MIL-23053/13, ensuring suitability for military and aerospace applications where compliance and durability are essential.
Common Uses:
- Automotive wire harnesses exposed to fuels, oils, and high temperatures
- Aerospace and avionics wiring protection
- Military electronic systems and defense equipment
- Industrial control panels and high-temperature cabling
- Fuel system and hydraulic line insulation
- Sensor, connector, and terminal protection in harsh environments
- Electrical insulation requiring chemical and flame resistance
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Property | Test Method | Standard | Typical Performance |
| Tensile Strength(MPa) | ASTM D2671 | ≥8.5 | 10 |
| Elongation(%) | ASTM D2671 | ≥250 | 300 |
| Tensile Strength after aging (MPa) | Ul224 158℃X168hr | ≥7.3 | 8.5 |
| Elongation after aging(%) | Ul224 158℃X168hr | ≥200 | 250 |
| Dieletric strength(kV/mm) | IEC 60243 | ≥15 | 17.5 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1X109 | 2.5X109 |
| Flammability | Ul224 VW-1 | Pass | Pass |
| Inside Diameter | As Supplied | After Recovery (mm) | |
| Max Inside Diameter | Wall Thickness | ||
| 1/8" | 3.2 mm | 1.6 | 0.76±0.15 |
| 1/2" | 12.7 mm | 6.4 | 0.89±0.20 |
| 1" | 25.4 mm | 12.7 | 1.25±0.30 |
