Panduit® Pan-Ty® Heat Stabilized Cable Ties

Extreme Resistance to Heat | 3.9" - 14.5" Lengths

0.0 / 5

(0)

Panduit® Pan-Ty® Heat Stabilized Zip Ties Features

  • Manufactured with Heat Stabilized Nylon 6.6
  • One-piece locking wedge for consistent performance and reliability
  • Low thread force and high loop tensile strength
  • Operating temperature range -76º to +239º F
  • CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint
See More Technical Specifications

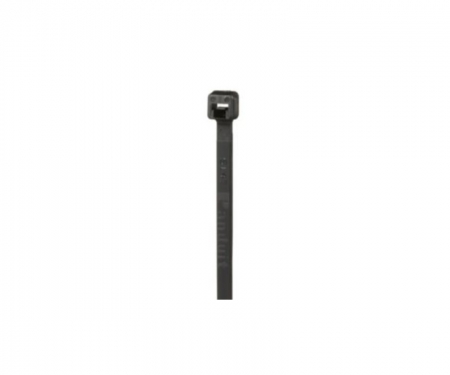

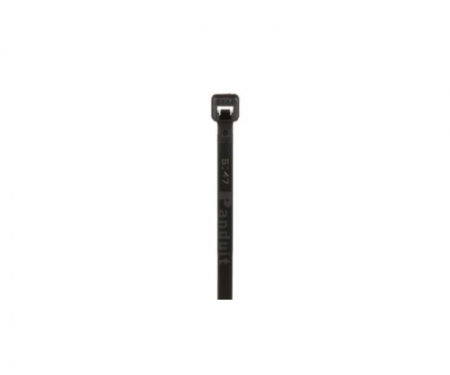

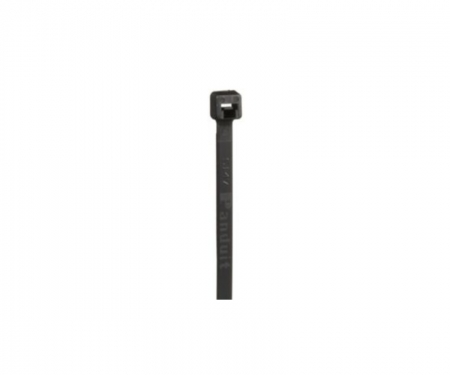

Panduit Locking Cable Ties are designed to satisfy the needs of high temperature applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Made of Heat Stabilized Nylon 6.6, these zip ties are black in color and range from 3.9" (99mm) to 14.5” (368.3mm) lengths.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Part Number Length Width Thickness Max. Bundle Dia. Min.Loop Tensile Str. Std. Pkg. Qty.
In. mm In. mm In. mm In. mm Lbs. N
PLT1M-C30 3.9 99 0.098 2.5 0.043 1.1 0.87 22 18 80 100
PLT1.5I-C30 5.6 142 0.142 3.6 0.045 1.1 1.38 35 40 178 100
PLT2I-C30 8.0 203 0.142 3.6 0.045 1.1 2 51 40 178 100
PLT2S-C30 7.4 188 0.19 4.8 0.052 1.3 1.88 47.8 50 222 100
PLT3S-C30 11.5 292 0.19 4.8 0.052 1.3 3 76 50 222 100
PLT4S-C30 14.5 368 0.19 4.8 0.052 1.3 4 102 50 222 100
