F360 Braided Sleeving

Full Coverage - Light Weight & Durable - 1/2" - 1" Dia Available

F360 Braided Sleeving Features

  • Labor Effective Easy Installation
  • Soft & Quiet In High Vibration Uses
  • Cut & Abrasion Resistant
  • Chemically Inert
  • Halogen Free
  • Retains Shape & Rigidity
  • -94ºF – 257ºF Operating Temperature Range
Click for More Details or Description

Require Splice Free? Please Call 1877-284-7760

Inside Diameters Are Measured as Round Not Flat

Product Details

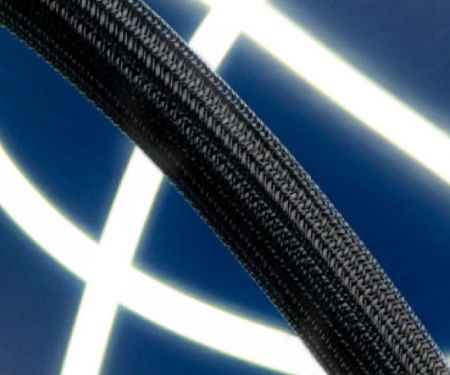

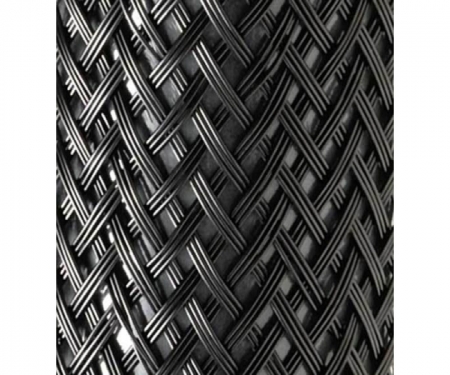

F360° is an innovative conduit designed to encase your wires with a flexible structure. F360's circular shape is lightweight yet extremely strong. Utilizing our now famous F6 style triaxial braid technology, this new design will solve situations that need additional security and tamper resistance.

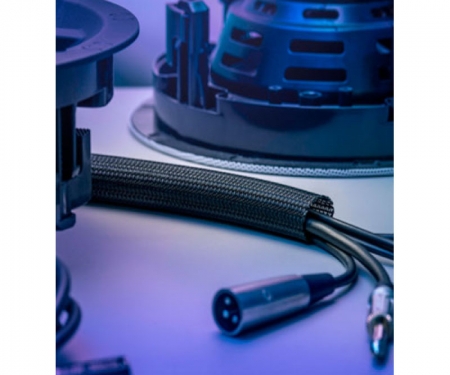

The full 360° degree enclosure makes a sturdy wire duct while still remaining breathable and light. Feeding wires through F360° is easy due to the ridged design. The beautifully finished bundle will maintain it's shape and add serious protection for avery long life.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Wall Thickness Standard Spool
Put-Ups
Colors Lbs/
100'
Bulk Box A Box B
3/8"
1/2"
3/4"
1"
1 1/4"
1 3/8"
1 1/2"
2"
F360.38BK
F360.50BK
F360.75BK
F3601.00BK
F3601.25BK
F3601.38BK
F3601.50BK
F3602.00BK
.028"
.028"
.028"
.028"
.028"
.028"
.040"
.040"
1,500'
1,200'
500'
400'
250
200'
150'
100'
150'
150'
100'
100'
75'
75'
75'
50'
75'
75'
50'
50'
25'
25'
25'
25'
1
1
1
1
1
1
1
1
0.83
1.14
1.53
1.67
2.26
2.48
3.90
5.37



Physical Properties
Monofilament Thickness (ASTM D-204) .010
Flammability Rating UL-94
Recommended Cutting Hot Knife
Colors 1
Wall Thickness .030 - .035
Tensile Strength - Yarn (ASTM D-2265) lbs. 6 - 10
Abrasion Resistance Medium
Specific Gravity 1.38
Moisture Absorption % (ASTM D-570) .1 - .2



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 2
Alipahtic Solvents 1
Chlorinated Solvents 3
Weak Bases 1
Strong Bases 2
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 3
Strong Oxidants 2
Esters/Ketones 1
UV Light 1
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .19
CVCM .00
WVR .16
Smoke D-Max (ASTM E-662) 56
Outgassing Medium
Oxygen Index (ASTM D-2863) 21



Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 257°F/125°C
Melt (ASTM D-2117) 482°F/250°C



Other Information
Halogen Free Yes
RoHS Yes
SVHC None
UL/CSA Yes
