Flexo Remix Braided Sleeving

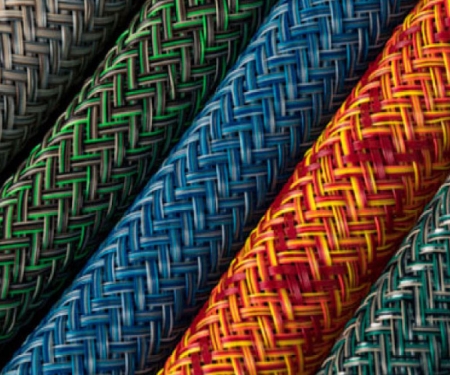

Camouflage & Other Unique Color Combos - 3/8" to 1-1/2"

Flexo Remix Braided Sleeving Features

  • Economical & Easy To Install
  • Resists Gasoline, Engine Chemicals & Cleaning Solvents
  • Cut & Abrasion Resistant
  • FMVSS 302 Approval
Click for More Details or Description

Require Splice Free? Please Call 1877-284-7760

Inside Diameters Are Measured as Round Not Flat

Product Details

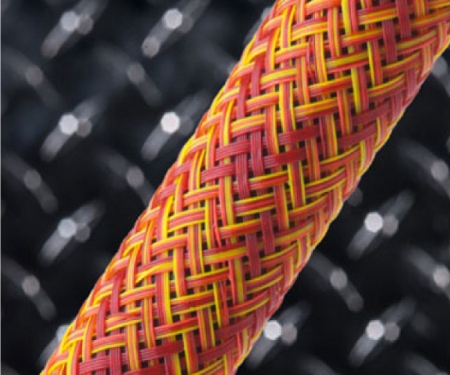

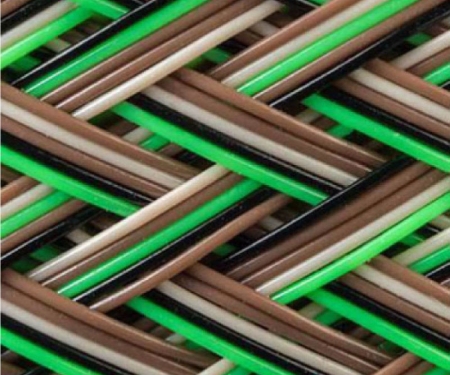

Flexo reMix’s innovative construction process produces a unique visual effect while providing fuller coverage and enhanced protection. The same PET monofilaments we use for the Flexo PET grade sleeving come alive in these new color combinations. Use Denim, Fire and Camo to add pizzazz to any sleeving application. PT is braided from 10 mil PolyEthylene Terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, resists chemical degradation, UV damage and abrasion.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Expans. Range Standard Spool Put-Ups Colors Lbs/
100'
Min. Max. Bulk Shop
3/8"
1/2"
3/4"
1 "
1 1/4"
1 1/2"
PTM0.38
PTM0.50
PTM0.75
PTM1.00
PTM1.25
PTM1.50
1/4"
3/8"
5/8"
7/8"
1 1/8"
1 3/8"
7/16"
5/8"
1 3/16"
1 1/2"
1 3/4"
2 3/8"
500'
500'
250'
250'
250'
200'
125'
100'
75'
65'
65'
40'
5
5
5
5
5
5
0.49
0.74
0.99
1.32
1.34
1.96



Physical Properties
Monofilament Thickness (ASTM D-204) .010
Flammability Rating UL-94
Recommended Cutting Hot Knife
Colors 5
Wall Thickness .025
Tensile Strength - Yarn (ASTM D-2265) lbs. 7.5
Abrasion Resistance Medium
Specific Gravity 1.38
Moisture Absorption % (ASTM D-570) .1 - .2



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .19
CVCM .00
WVR .16
Smoke D-Max (ASTM E-662) 56
Outgassing Medium
Oxygen Index (ASTM D-2863) 21



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 2
Alipahtic Solvents 1
Chlorinated Solvents 3
Weak Bases 1
Strong Bases 2
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-L-7808) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 3
Strong Oxidants 2
Esters/Ketones 1
UV Light 1
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1



Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 257°F/125°C
Melt (ASTM D-2117) 482°F/250°C



Other Information
Halogen Free Yes
RoHS Yes
SVHC None
UL/CSA Yes
