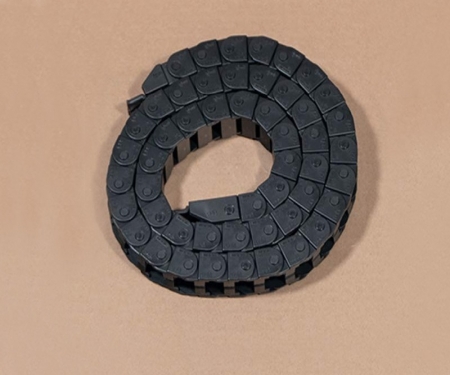

IGUS® E08 Series E-Z Chain® Cable Carrier

High Quality Cable & Hose Carriers at Low Prices

0.0 / 5

(0)

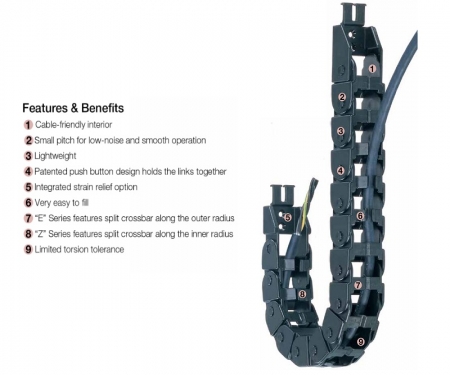

IGUS® E08 Series E-Z Chain Cable Carrier Features

  • Protects hoses and cable from debris such as wood chips or metal shavings, and from being pinched or shut off during use
  • Water and temperature resistance for extreme applications
  • Limited bend radius protects cables for optimal performance
  • No special tools needed - chain and tubes can be opened and adjusted using just a screwdriver
  • Small pitch for fast and easy access
  • Made from strong material (igumid NB) for torsional rigidity and torque resistance
  • Cable carrier chain Specifically constructed for quiet operation
  • Ability to handle high loads for your convenience
  • Multi-axis movement for a faster operation
  • Smart design for fast and easy access
  • Withstands temperatures from -22° to 212° F (-30° to 100° C) for use in extreme conditions
See More Technical Specifications


IGUS® E-Chain® cable carrier systems are widely used to guide and protect cables and hoses on automated machinery. Over 30 years of experience have proven excellence in performance in various fields such as medical lab equipment, robot dress out, extendable trailers and telehandlers, packaging machinery, machine tools, and custom machines. E-Chain® cable track chain is a lightweight, maintenance-free carrier, that prevents cables from breaking, corkscrewing, or tangling.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Material Specifications

Material (chain): igumid NB
Material (mounting brackets): igumid G
Permitted Temperature: -22°F/212°F (-30°C/+100°C)
Gliding Speed Max: Conditionally suitable
Unsupported V Max: 32.8ft/s (10m/s)
Flammability Class (chain): VDE 0304 IIC UL94 V2
Flammability Class (mounting brackets): VDE 0304 IIC UL94 HB

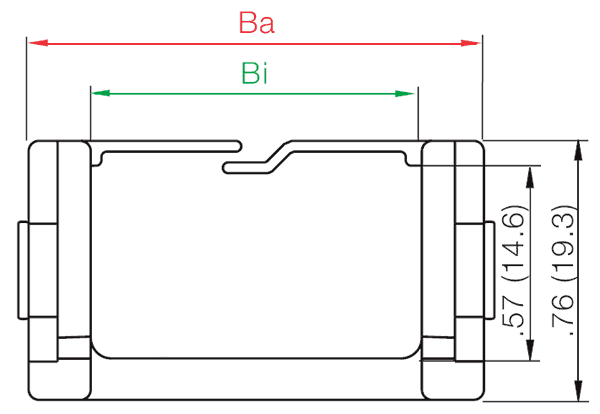

Dimensional Specifications

PART # INNER WIDTH (BI)
(INCHES)
OUTER WIDTH (BA)
(INCHES)
RADIUS
(INCHES)
CURVE HEIGHT
(INCHES)
CURVE LENGTH
(INCHES)
WEIGHT
(LB/FT)
IGU-E08-10-028-0 0.39 0.71 1.1 3.15 5.12 0.15
IGU-E08-10-038-0 0.39 0.71 1.5 3.9 6.3 0.15
IGU-E08-10-048-0 0.39 0.71 1.9 4.72 7.48 0.15
IGU-E08-16-028-0 0.63 0.95 1.1 3.15 5.12 0.16
IGU-E08-16-038-0 0.63 0.95 1.5 3.9 6.3 0.16
IGU-E08-16-048-0 0.63 0.95 1.9 4.72 7.48 0.16
IGU-E08-20-028-0 0.79 1.11 1.1 3.15 5.12 0.17
IGU-E08-20-038-0 0.79 1.11 1.5 3.9 6.3 0.17
IGU-E08-20-048-0 0.79 1.11 1.9 4.72 7.48 0.17
IGU-E08-30-028-0 1.18 1.5 1.1 3.15 5.12 0.19
IGU-E08-30-038-0 1.18 1.5 1.5 3.9 6.3 0.19
IGU-E08-30-048-0 1.18 1.5 1.9 4.72 7.48 0.19
IGU-E08-40-028-0 1.57 1.89 1.1 3.15 5.12 0.21
IGU-E08-40-038-0 1.57 1.89 1.5 3.9 6.3 0.21
IGU-E08-40-048-0 1.57 1.89 1.9 4.72 7.48 0.21
IGU-E08-50-028-0 1.97 2.29 1.1 3.15 5.12 0.25
IGU-E08-50-038-0 1.97 2.29 1.5 3.9 6.3 0.25
IGU-E08-50-048-0 1.97 2.29 1.9 4.72 7.48 0.25

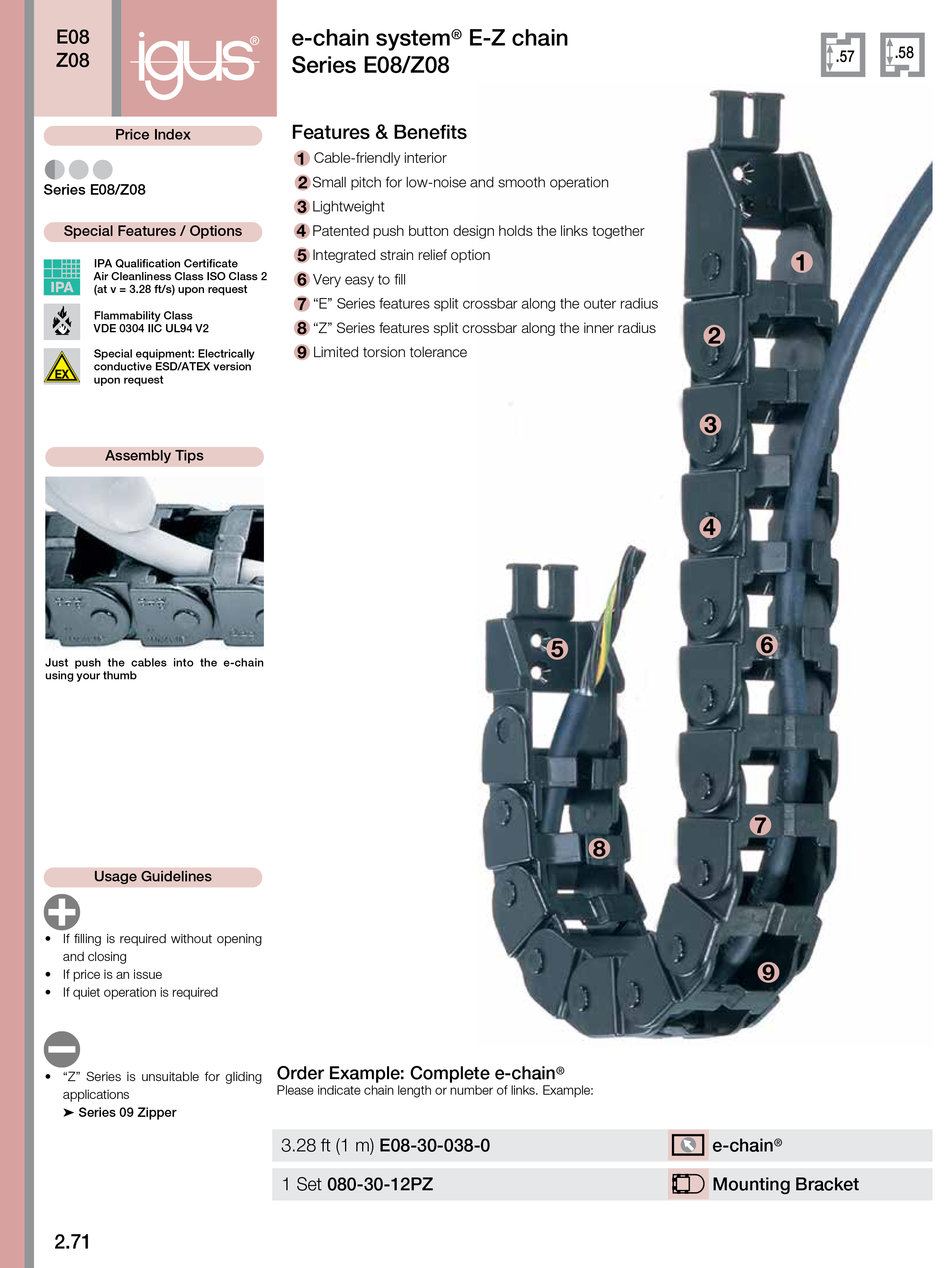

Click the image below to view the full data sheet.
