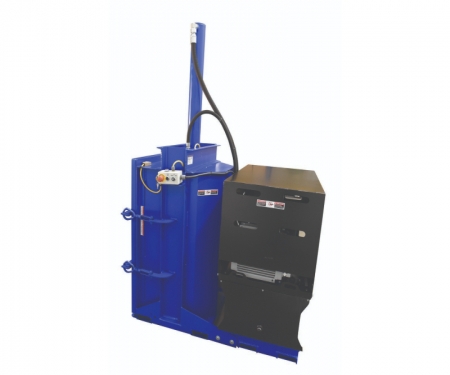

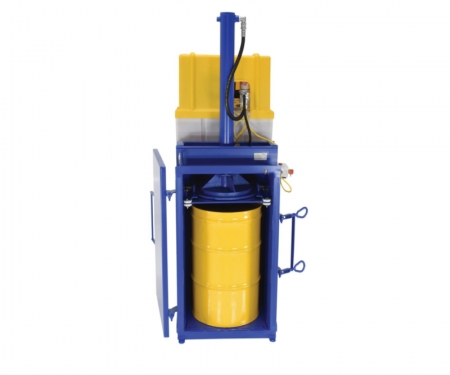

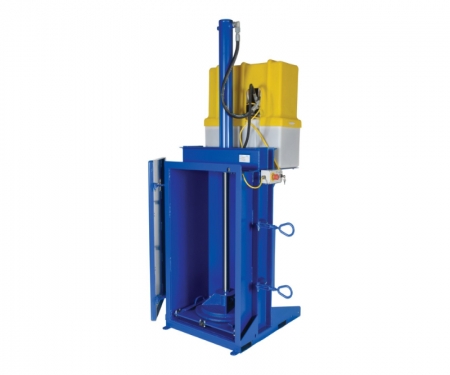

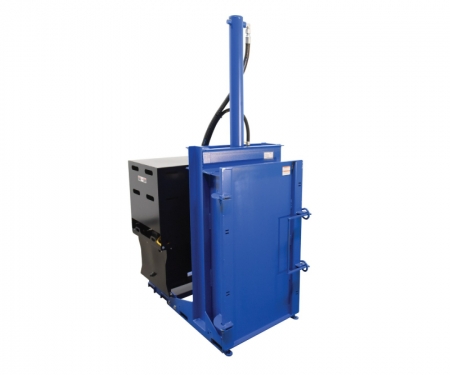

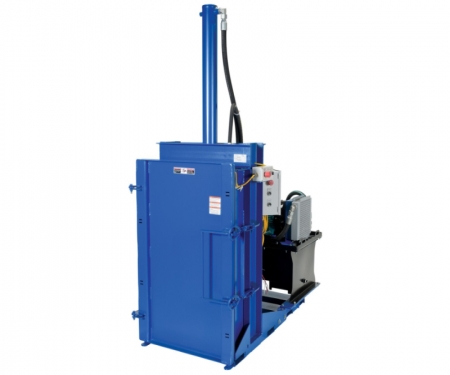

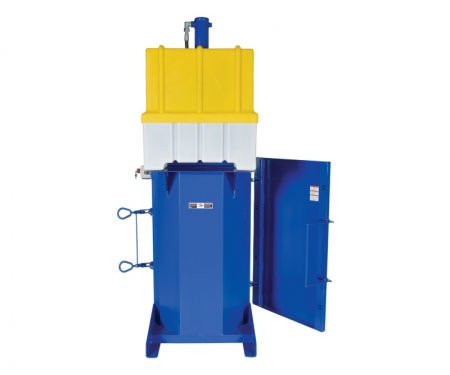

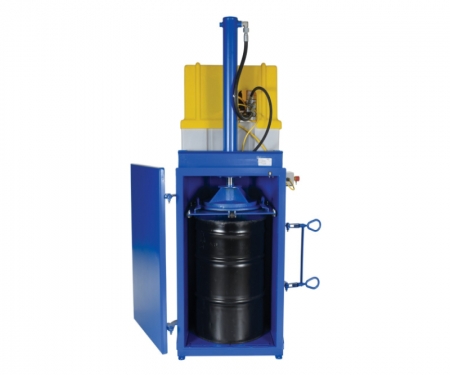

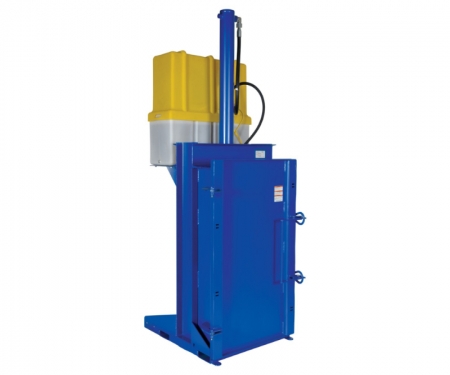

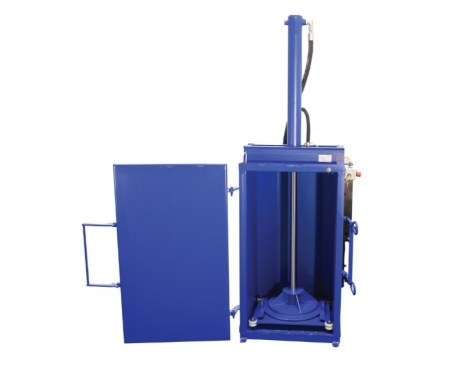

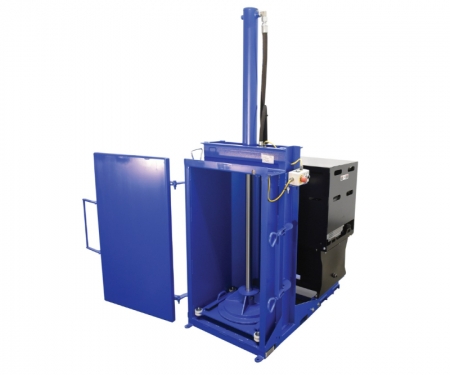

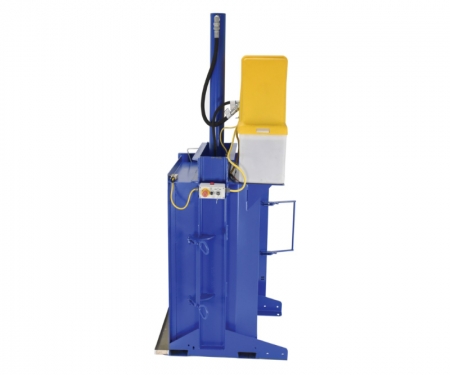

Vestil® Hydraulic Drum Crusher / Compactors
38,000 lbs. of crushing force flattens 55-gallon drums to 6 Inches
0.0 / 5
Vestil® Hydraulic Drum Crusher / Compactors Features
- Color: Blue
- 38,000 lbs. of crushing force flattens 55-gallon drums to 6" in 25 to 30 seconds
- Powered illuminated on/off switch increases user awareness and safety
- Mushroom-head emergency stop button will instantly shut-down unit
- Manufactured to comply with OSHA and JIC standards & specifications
HDC-905-HC is high cycle version. It has a heavy duty continuous run (with timer) power unit and will basically do unlimited number of cycles. The model HDC-905-IDC crushes 55-gallon steel drums to approximately 6" high and resets automatically to crush another drum. Full cycle time is 25 seconds (crush and retract). This unit is designed for a duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply. 38,000 pounds of crushing force. The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen. Crushing feature will work with any drum size up to 55-gallons. Compacting feature will only work with 55-gallon drums. This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload, and a double door latch to secure the door when crushing. Plus an interlock system that will prevent the motor from running unless the door is closed. 6.5 hp motor, 3-phase, 60 hz, choose from 208V, 230V or 460V Meets OSHA 1910.212 and ANSI Z245.5 standards. Built-in fork pockets aid in transporting. Aluminum drip pan, for catching any excess liquid that may be expelled during the crushing operation. The pan holds 1 gallon and measures 31-1/2"W x 4-1/2"L x 1-5/8"H.
Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
TECHNICAL SPECIFICATIONS
| Approximate Crushed Height (in.): 6 | Full Cycle Time (Crush and Retract) (seconds): 25 | Crushing Force (lb.): 38000 |
| Motor (hp): 6.5 | Phase: 3 | Voltage: 208 / 230 / 460 |
| Hertz: 60 | Crushing/Compacting Drums per week (qty.): 250 for IDC Models Unlimited for HC Models | Compacting Platen Diameter (in.): 21 |
| Usable Chamber Length (in.): 25 | Usable Chamber Width (in.): 25 | Usable Chamber Height (in.): 35-3/4 |
| Crushing Plate Weight (lbs.): 75 | Oil Reservoir (Gallons): 18 / 25 | Max. Crushing Force (lbs.): 38000 |
| Max. Compacting Force (lbs.): 18000 | Drip Pan Width (in.): 31-1/2 | Drip Pan Length (in.): 4-1/2 |
| Drip Pan Height (in.): 1-5/8 | Drip Pan Capacity (gallon): 1 |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
HDC-905-HC is high cycle version. It has a heavy duty continuous run (with timer) power unit and will basically do unlimited number of cycles. The model HDC-905-IDC crushes 55-gallon steel drums to approximately 6" high and resets automatically to crush another drum. Full cycle time is 25 seconds (crush and retract). This unit is designed for a duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply. 38,000 pounds of crushing force. The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen. Crushing feature will work with any drum size up to 55-gallons. Compacting feature will only work with 55-gallon drums. This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload, and a double door latch to secure the door when crushing. Plus an interlock system that will prevent the motor from running unless the door is closed. 6.5 hp motor, 3-phase, 60 hz, choose from 208V, 230V or 460V Meets OSHA 1910.212 and ANSI Z245.5 standards. Built-in fork pockets aid in transporting. Aluminum drip pan, for catching any excess liquid that may be expelled during the crushing operation. The pan holds 1 gallon and measures 31-1/2"W x 4-1/2"L x 1-5/8"H.
Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
TECHNICAL SPECIFICATIONS
| Approximate Crushed Height (in.): 6 | Full Cycle Time (Crush and Retract) (seconds): 25 | Crushing Force (lb.): 38000 |
| Motor (hp): 6.5 | Phase: 3 | Voltage: 208 / 230 / 460 |
| Hertz: 60 | Crushing/Compacting Drums per week (qty.): 250 for IDC Models Unlimited for HC Models | Compacting Platen Diameter (in.): 21 |
| Usable Chamber Length (in.): 25 | Usable Chamber Width (in.): 25 | Usable Chamber Height (in.): 35-3/4 |
| Crushing Plate Weight (lbs.): 75 | Oil Reservoir (Gallons): 18 / 25 | Max. Crushing Force (lbs.): 38000 |
| Max. Compacting Force (lbs.): 18000 | Drip Pan Width (in.): 31-1/2 | Drip Pan Length (in.): 4-1/2 |
| Drip Pan Height (in.): 1-5/8 | Drip Pan Capacity (gallon): 1 |
