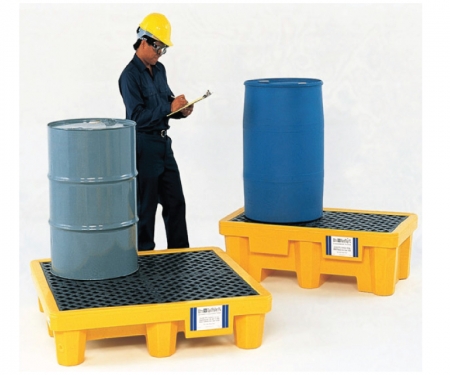

Ultratech® Standard Spill Pallets

2 Drum & 4 Drum Pallet Options Available

Ultratech® Standard Spill Pallet Features

  • 4 drum pallet Load Capacity: 6,000 lbs.

  • 2 drum pallet Load Capacity: 3,000 lbs.

  • Bright, safety yellow sidewalls are translucent, offering convenient visual leak detection.

  • 100% polyethylene construction compatible with a wide range of chemicals, including acids and corrosives.

  • Compliance: Meets SPCC and EPA Container Storage Regulation 40 CFR 264.175 Spill Containment Regulations.

Click for More Details or Description

Product Details

spill Containment Pallets protect against chemical spills or leaks

The Ultra-Spill Pallet is specially constructed to support heavy loads and designed to be easily used and transported. Its 100% polyethylene construction makes it compatible with a wide range of chemicals, while its low-rise walls allow easier accessibility for pouring.

It helps meet spill containment regulations for up to four drums, and comply with SPCC and EPA spill containment requirements.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Part # Description Dimensions in. (mm) Uniformly Distributed Load lbs. (kg) Containment Capacity gal. (L) Weight lbs. (kg)
1010 2-Drum Spill Pallet, without drain 53 x 29 x 16½ (1346 x 737 x 419) 3,000 (1361) 66 (250) 63.0 (29.0)
1011 2-Drum Spill Pallet, with drain 53 x 29 x 16½ (1346 x 737 x 419) 3,000 (1361) 66 (250) 63.0 (29.0)
1000 4-Drum Spill Pallet, without drain 53 x 53 x 11¾ (1347 x 1347 x 299) 6,000 (2722) 66 (250) 90.0 (41.0)
1001 4-Drum Spill Pallet, with drain 53 x 53 x 11¾ (1347 x 1347 x 299) 6,000 (2722) 66 (250) 90.0 (41.0)



Product Manuals

Request a Quote

Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.

Quote Items
Search
Item Description
Quantity
SKU:

Contact Information

Frequently Asked Questions

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.


What are the dimensions for the forklift pockets?

Are these Spill Pallets forkliftable from all four sides?

The 4-Drum model is forkliftable from all four sides.  The 2-drum model is forkliftable from either of the two longer (53") sides.

Why is there a ramp offered for the 4-drum pallet but not the 2-drum?

The P2 Spill Pallet is taller (16.5") than the P4 Spill Pallet (11.75").  A ramp to reach that height would have to be fairly long in order to make a safe and effective slope.  The cost to make such a large ramp is cost prohibitive.  If you are interested in a 2-drum pallet that has a ramp available, we suggest looking at the Spill Pallet Plus Models.


Why do these pallets have a 66-gallon capacity?  I thought the requirement was for 55-gallons.
The EPA requirements (40 CFR 264.175) do call for 55-gallons.  So the Ultra-Spill Pallets EXCEED those federal requirements.  However, when these pallets were introduced to the market, there was another requirement in the Uniform Fire Code.  That requirement is no longer in effect but called for a 66-gallon sump capacity.

Can I add a drain to my Spill Pallet after it's been purchased/delivered?

Yes, there are two different ways that it can be done.  Both are easy to do and inexpensive.  Please contact us for more information.

I'm not sure if I should get a Spill Pallet with a drain or without.  What do you recommend?

Good arguments can be made for either option so it is difficult to give a single recommendation.  Some users prefer to have a drain to make clean-up easier.  If a spill occurs, the drain plug can be unscrewed and the contents can drain out into an appropriate container.  Others feel that the drain plug is something that could be unscrewed (for cleaning or maintenance) and then forgotten.  Needless to say, that would make for a very ineffective spill containment pallet.


If I don't have a drain, then how am I supposed to clean up after a spill?
We recommend using a pump like the Bladder Pump (Part# 2345) used with our Spill Deck Bladder Systems.


How many pallets can be put in a single stack for shipping?  What other shipping information should I know?
The Ultra-Spill Pallet P4 can be stacked up to eight (8) high.  The Ultra-Spill Pallet P2 can be stacked up to six (6) high.  Both are freight class 150 and NMFC 150390-4.

Regulations

  • 40 CFR 264.175
  • Spill Prevention, Control and Countermeasure Act (SPCC)
