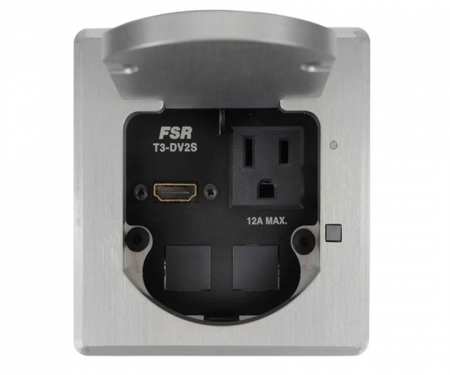

T3-DV2S Table Boxes - FSR®

Contains HDMI, Data & AC Power - Optional Buttons With LED

FSR® T3-DV2S Table Box Features

  • Fits In 3.5” Hole Diameter
  • 1 HDMI
  • 1 AC Outlet
  • 2 Data

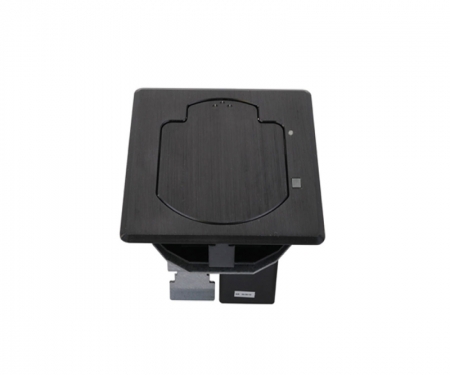

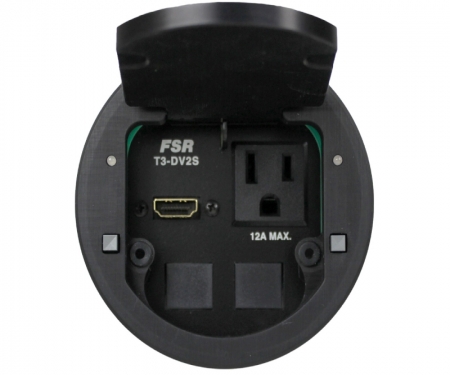

  • Options Available With: No Buttons, 1 LED + Button, & 2 Buttons With 2 LED.
  • 9’ Power cord

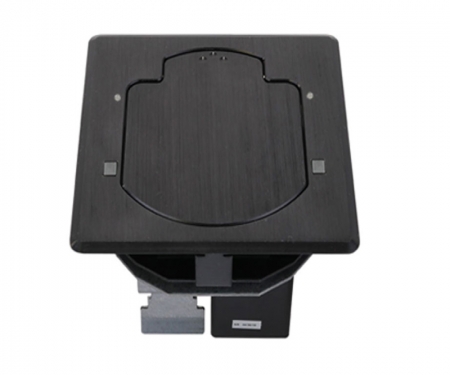

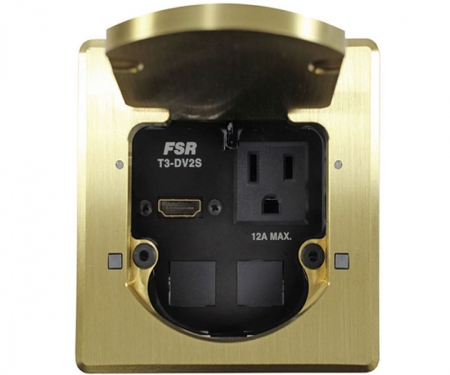

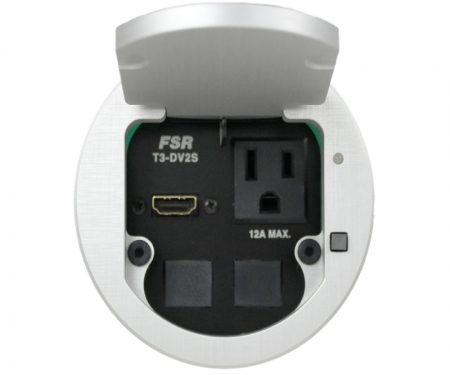

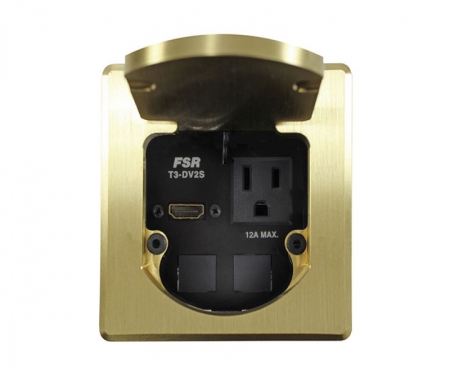

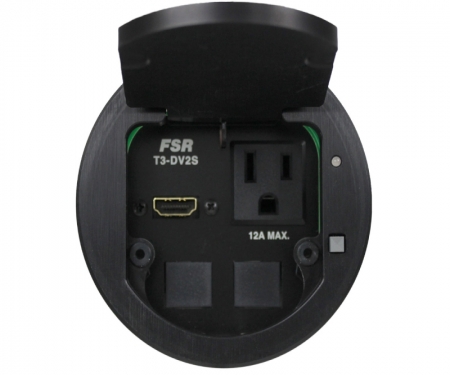

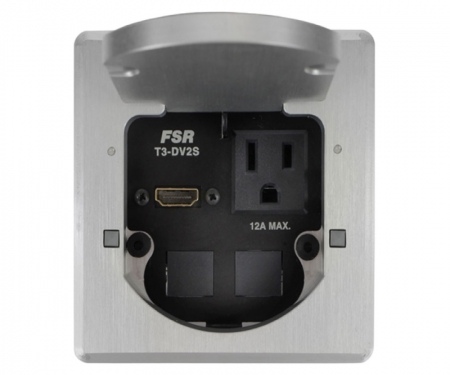

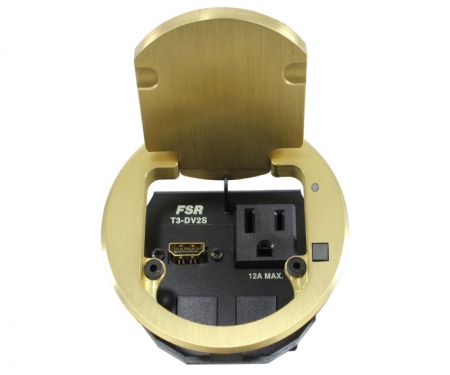

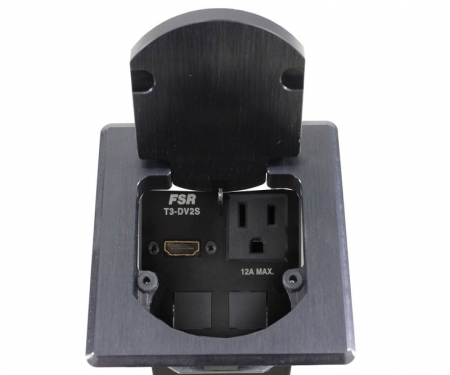

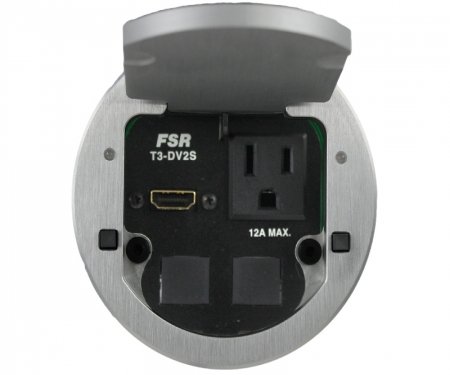

  • Round or square options

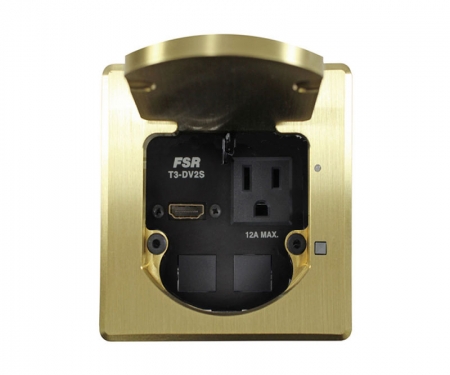

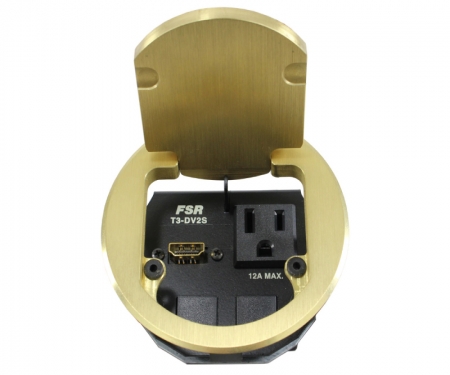

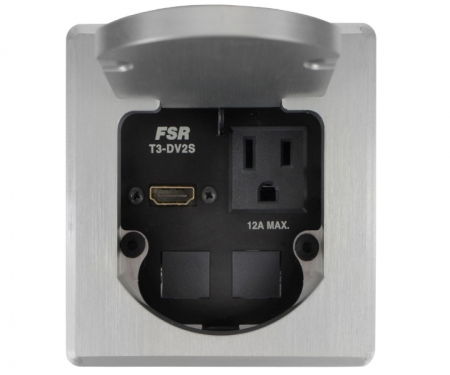

  • Aluminum, black, and brass options



Click for More Details or Description

Product Details

FSR® T3-DV2S Table Boxes are HD ready with a bulkhead mounted HDMI connector and two keystone openings for network connectivity, FSR's snap-in USB charger and many other FSR Simple Solutions snap-in connectors. Two blanks are included with all models. For convenience, an integral AC outlet with cord is ready to power a laptop or mobile device. One or two push button LED options can be ordered and used to operate and provide status from a control systems as required. The output is easily wired using the captive screw terminals on the under-side of the unit.

Round and square covers are available in black, brass or aluminum to blend with the decor. The small footprint provides an unobtrusive complement to any décor.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

These stylish table boxes fit a 3 1⁄2”  round opening and are easily installed using a standard hole saw.

The T3-DVS2 can be installed in tables 3⁄4” to 2 1⁄2” thick. They are shipped with 3” installation screws and the components listed below.

The T3-DV2S is HD ready with a bulkhead mounted HDMI connector and two keystone openings for network connectivity, FSR's snap-in USB charger and many other FSR Simple Solutions snap-in connectors. Two blanks are included with all models. For convenience, an integral AC outlet with cord is ready to power a laptop or mobile device.

One or two push button LED options can be ordered and used to operate and provide status from a control systems as required. The output is easily wired using the captive screw terminals on the under-side of the unit. Round or square cover choice, along with aluminum, black or brass finishes are offered.

Installation Instructions

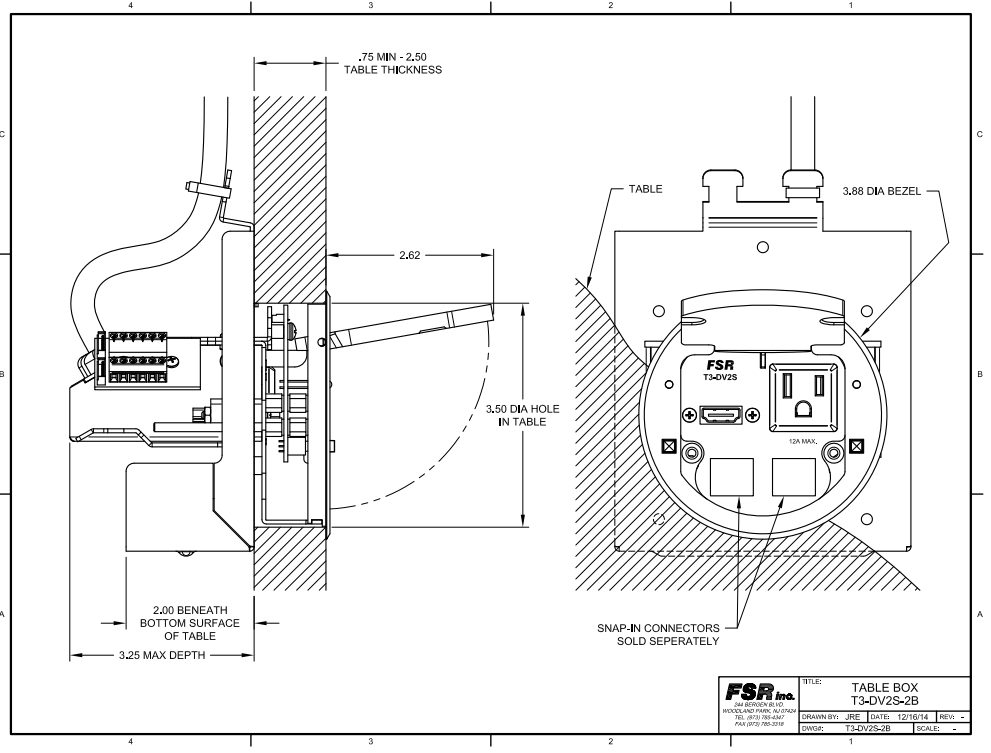

Click the image below to view a larger diagram for the round T3-DV2S table boxes.

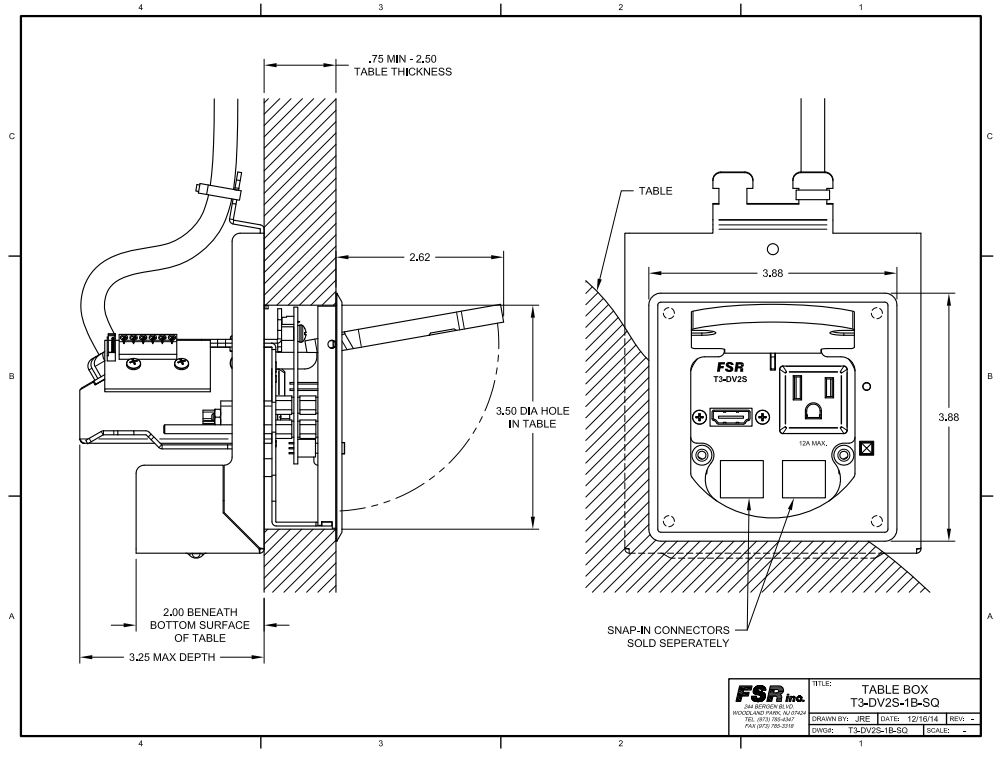

Click the image below to enlarge the diagram of the square T3-DV2S table box.
