Snap In Bushings

Easily Installed To Provide Edge Protection For Wire Bundles

Plastic Snap In Bushing Features

  • Split design allows for installation into pre-existing holes
  • Available in packages of either 10, 500, or 1,000 pcs
  • Snap Fit Bushings protect wires, cables, and tubing from sharp edges of sheet metal holes
  • The split, push-fit design allows this bushing to be easily assembled into holes that already contain a bundle
  • Fingertip pressure to install
  • Withstands a push back force of greater than 35 pounds
  • UL Approved: E320906
Click for More Details or Description

Product Details

The Open Snap-in Bushing (A Series) has a split design to allow side entry of wire or cable bundles. The split design also accommodates a retro-fit installation on pre-assembled harnesses. May be installed into holes that already contain wires.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

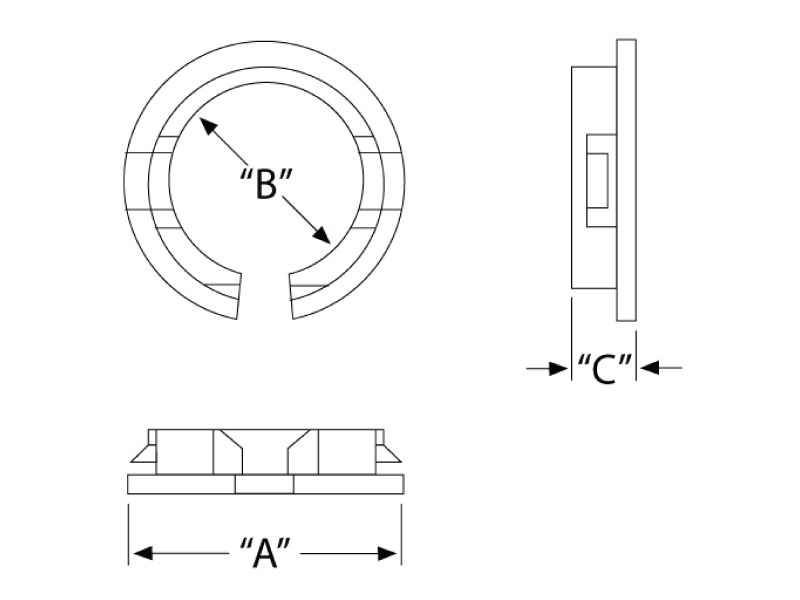

Part # Hole Diameter, in(mm) Panel Thickness Range, in(mm) "A" Dia.Ref., in(mm) "B" Max Holding Diameter, in(mm) "C", in(mm)

GR-PGSA-0407A-10

GR-PGSA-0407A-1000

.276(7)

.016-.039(0.4-1) .41(10.4) .19(4.8) .20(5)

GR-PGSA-1013A-10

GR-PGSA-1013A-500

.512(13) .039-.059(1-1.5) .64(16.2) .36(9.2) .21(5.3)

GR-PGSA-1316A-10

GR-PGSA-1316A-500

.630(16) .039-.055(1-1.4) .76(19.4) 48(12.2) .21(5.4)

GR-PGSA-1519A-10

GR-PGSA-1519A-500

.748(19) .039-.059(1-1.5) .89(22.7) .56(14.3) .22(5.7)

GR-PGSA-1822A-10

GR-PGSA-1822A-500

.866(22) .031-.063(0.8-1.6) 1.00(25.5) .69(17.6) .22(5.6)

GR-PGSA-2024A-10

GR-PGSA-2024A-500

.945(24) .031-.062(0.8-1.6) 1.06(27) .77(19.5) .21(5.3)

GR-PGSA-2024A1-10

GR-PGSA-2024A1-500

.039-.047(1-1.2)

GR-PGSA-2327A-10

GR-PGSA-2327A-1000

1.063(27.1) .016-.039(0.4-1) 1.38(35.1) .90(22.9) .24(6)

GR-PGSA-2529A-10

GR-PGSA-2529A-1000

1.142(29) .016-.043(0.4-1.1) .97(24.5) .28(7)
