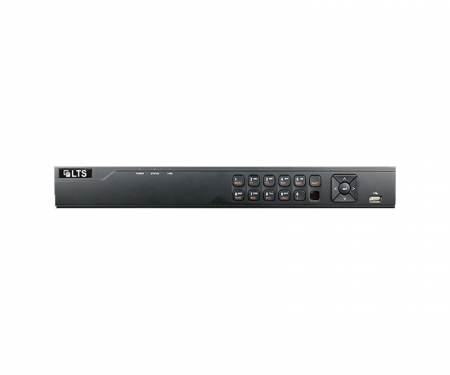

Platinum Pro Level 16 Channel NVR 1U

16 channel NVR, with Playback up to 1080p and has 160 mp Bandwidth

Platinum Pro Level 16 Channel NVR 1U Features

  • 16 Channel Network Video Recorder
  • Video Input: 16CH IP@160Mbps
  • Video Output: VGA/HDMI up to 1920x1080P
  • Pentaplex Operation: Record, Playback, Backup, Live & Remote Access
  • Recording Resolution: Up to 6MP (3072x2048)
  • Recording Mode: Manual, Schedule, Video Detection, Motion Detection, Video Loss, Stop
  • Playback Channel: 8CH
  • Playback Resolution: Up to 6MP (3072x2048)
  • Audio In/Out: 1CH/ 1CH, RCA
  • Built-in PoE: 8CH
  • Network: 10/100/1000M
  • Storage: 2 SATA up to 12TB
                    2 USB, Support NAS, IP SAN
  • Support POS #: 4
  • Backup: USB or NAS
Click for More Details or Description

Product Details

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Recorder Series Platinum Series
Recorder Channel 16-Channel
Recorder Case 1U Case
Recorder Technology IP / NVR
Featured Product No
Specifications
Video / Audio input
IP video input 16-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth 160Mbps
Outgoing bandwidth 80Mbps
Remote connection 128
Video / Audio output
Recording resolution 6MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI / VGA output 1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz,
1280 × 1024 /60Hz, 1280× 720 /60Hz, 1024 × 768 /60Hz
Audio output 1-ch, RCA (Linear, 1kΩ)
Frame rate Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Decoding
Live view / Playback resolution 6MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 16-ch
Hard disk
SATA 2 SATA interface for 2 HDDs
Capacity Up to 6TB for each disk
External interface
Network interface 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
Serial interface 1 RS-485 half-duplex interface
USB interface 1 × USB 2.0 and 1 × USB 3.0
PoE
PoE Interface  8 independent 100 Mbps PoE
Max. Power 120W
Standard  AF and AT
General
Power supply 100~240 VAC, 47 ~ 63 Hz, 3A
Power Consumption ≤ 10 W (without hard disk)
Working temperature 14°F~131°F(-10 °C ~ +55 °C)
Working humidity 10% ~ 90%
Chassis 19-inch Rack-Mounted 1U Chassis
Dimension  17.5”×11.4”×1.8”(445 × 290 × 45mm )
Weight ≤ 2.2lb(1 Kg )( without hard disk)
