Techflex® Flexo® Non Skid Braided Cable Sleeving
Increased Friction on Smooth Surfaces Minimizes Slipping & Accidents
0.0 / 5
Non Skid Braided Sleeving Features
- Increased Safety in High Traffic Areas
- Cut & Abrasion Resistant
- Cuts Easily With Hot Knife
- Economical & Easy To Install
- Expands Up To 150%
- Temperature Range: -40° to 175°F (-40° to 79°C.)
- RoHS Compliant
- Melt Temp: 260°F./126°C.
Inside Diameters Are Measured as Round Not Flat

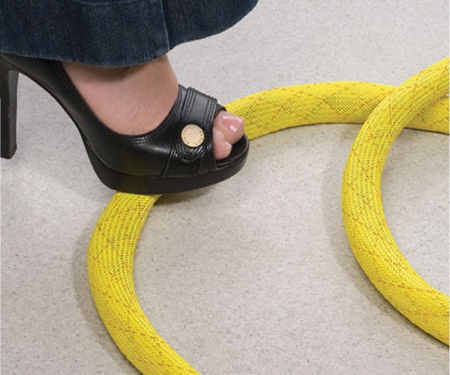

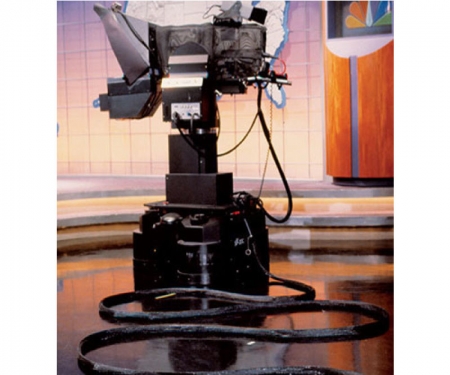

Non-Skid braided sleeving is a unique combination of our standard PET material braided together with high-friction polymer filaments. Non-Skid is engineered primarily for wire and cable management on smooth floor, high traffic environments such as broadcast studios where someone might inadvertently step on a cable snake and slip. As long as there’s no excessive pressure on the cables protected with Non-Skid, the entire snake glides easily and quietly along the floor. When local pressure is applied, such as when someone steps on the cable, the high friction material comes in contact with the floor and reduces the possibility of the cable sliding out from underfoot. Non-Skid is substantially less “slippery” than our regular PET, yet provides the same level of flexibility and protection from cable wear and abrasion
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Available Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/4" 3/8" 1/2" 5/8" 3/4" 1 1/4" 1 1/2" 2" | NSN0.25 NSN0.38 NSN0.50 NSN0.63 NSN0.75 NSN1.25 NSN1.50 NSN2.00 | 1/8" 3/16" 1/4" 3/8" 1/2" 3/4" 1" 1 1/2" | 7/16" 1/2" 3/4" 1" 1 1/4" 1 3/4" 2" 3 1/2" | 1,000' 500' 500' 500' 250' 200' 200' 200' | 200' 125' 100' 75' 70' 50' 40' 50' | 3 3 3 3 2 3 3 2 | 0.44 0.57 0.89 1.04 1.25 1.96 2.25 2.75 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .028 |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 3 |
| Wall Thickness | .07 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -40°F/-40°C |
| Maximum Continuous (MIL-I-23053) | 175°F/79°C |
| Melt (ASTM D-2117) | 260°F/126°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
