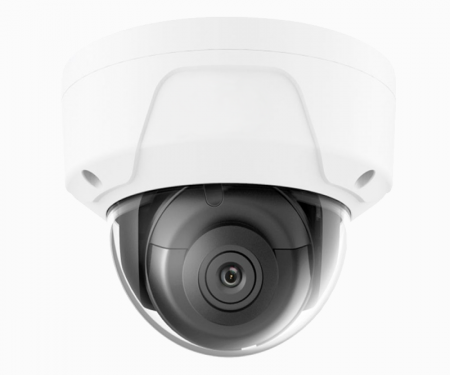

Platinum Network Vandal Dome IP Camera 4MP- 2.8mm

4 MP High Definition with 2560x1440@30fps and true WDR

0.0 / 5

(0)

Platinum Network Vandal Dome IP Camera 4MP- 2.8mm Features

  • 4MP High Definition
  • 2560x1440@30fps
  • 2.8mm Fixed Lens
  • 0.018 Lux @ F1.6
  • Matrix IR 2.0, IR Range up to 100 feet
  • H.265, H.265+, H.264, H.264+ Ready
  • True WDR 120dB
  • IP67 & IK10
  • MicroSD Slot up to 128GB
  • DC 12V, PoE
See More Technical Specifications


Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series Platinum Series
Camera Resolution 4MP
Camera Technology IP / Network
Camera Housing Dome
Featured Product No
Specifications
Camera
Image Sensor 1/3" Progres s ive S can CMOS
Min. Illumination 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8 mm: horizontal FOV:98°, vertical FOV: 55°, diagonal FOV: 114°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
Angle Adjustment Pan:0° ~ 360°, T ilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression

Main stream: H.265+/H.265/H.264 Zip+/H.264
Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG
Third stream: H.265+/H.265/H.264 Zip+/H.264

H.264 / H.264+ Type Main / High Profile
H.265 / H.265+ Type Main Profile / Sub-stream support
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual Stream Support
Max. Resolution 2560 × 1440
Main Stream 50Hz:25fps (2560×1440,2304×1296,1920×1080) 60Hz: 30fps (2560×1440,2304×1296,1920×1080)
Sub Stream 50Hz: 25fps (640 × 360, 352 × 288)60Hz: 30fps (640 × 360, 352 × 240)
Third Stream 50Hz: 25fps (1280×720, 640×360, 352×288)  60Hz: 30fps (1280×720, 640×360, 352×240)
Others Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Behavioral Analysis Line crossing detection, intrusion detection
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Reset Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding
General
Working Temperature
/Humidity
-22 °F ~+140 °F(-30 °C ~ +60 °C ) Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 25%,PoE(802.3af)
Power Consumption Max.6W
IR Range Up to 100ft(30m)
Weather Proof Ratings IP67
Impact Protection IK10
Dimensions Φ4.4″ × 3.2″ (Φ111 × 82.4 mm)
Weight 1.3lbs (610g)
