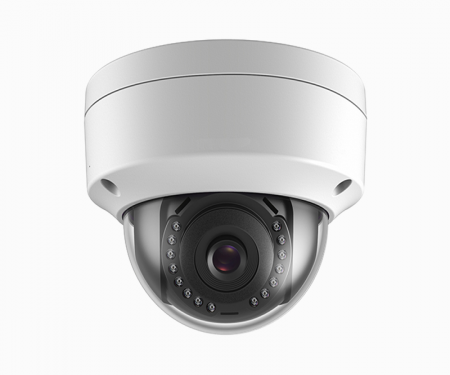

Platinum Network Vandal Dome IP Camera

4 MP High Definition with 2560x1440@20fps and DWDR

Platinum Network Vandal Dome IP Camera Features

  • 4MP High Definition
  • Up to 2560x1440@20fps
  • 2.8mm Fixed Lens
  • IR Range up to 100 feet
  • H.265, H.265+, H.264, H.264+ Ready
  • Digital Wide Dynamic Range (DWDR)
  • IP67 & IK10
  • DC 12V, PoE
  • Metal Housing
  • 2-Axis
Click for More Details or Description

Product Details

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series Platinum Series
Camera Resolution 4MP
Camera Technology IP / Network
Camera Housing Dome
Featured Product No
Specifications
Camera
Image Sensor 1/3 " Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 .028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Wide Dynamic Range Digital WDR
Angle Adjustment Pan: 0° ~ 355°, T ilt: 0° ~ 70
Compression Standard
Video Compression Main stream: H.2 65/H.264  Sub stream: H.265/H.2 64/MJPEG
H.264 / H.264+Type Baseline Profile/ Main Profile/ High Profile
H.265 / H.265+ Type Main Profile / Main Stream Support
Video Bit Rate 32 Kbps ~ 8 Mbps
Max. Resolution 2560 × 1440
Main Stream 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)  60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Enhancement BLC/ 3D DNR
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Network
Network Storage NAS (NFS,SMB/CIFS)
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Standard ONVIF(PROFILE S,PROFILE G),ISAPI
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Reset Yes
General
Working Temperature
/Humidity
-22 °F ~+122 °F(-30 °C ~ +50 °C ) Humidity 95% or less (non-condensing)
Power Supply DC 12V ± 25%
Power Consumption Max. 5W 12 VDC ± 25%,
IR Range Up to 100ft
Weather Proof Ratings IP67
Impact Protection IK10
Dimensions Φ4.4″ × 3.2″ (Φ111 × 82.4 mm)
Weight 0.9lb. (410 g)



Product Manuals
