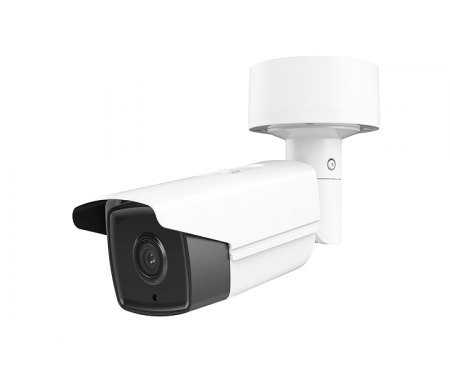

Platinum Matrix IR Bullet Network IP Camera 4.1MP

4.1MP High Definition with resolution up to 2688x1520fps and DWDR

Platinum Matrix IR Bullet Network IP Camera 4.1MP Features

  • 4.1MP High Definition

  • 4mm Fixed Lens

  • H.264 Zip+

  • Up to 2688×1520 Resolution

  • 2 Matrix IR LEDs up to 165ft

  • 3D DNR, DWDR, BLC, VCA

  • IP66

  • DC 12V, PoE

Click for More Details or Description

Product Details

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series
Platinum Series
Camera Resolution 4.1MP
Camera Technology IP / Network
Camera Housing Bullet
Featured Product No
Specifications
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.02 8Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Slow Shutter Support
Lens 4mm
Lens Mount M12
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range DWDR
Compression Standard
Video Compression H.264 / MJPEG/H.264 Zip+
H.264 Type Type Main Profile
Video Bit Rate 32 Kbps ~ 8 Mbps
Max. Resolution 2688×1520
Frame Rate 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature/
Humidity
-22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 7.5W
IR Range Approx. 165ft (50 meters)
Weather Proof Ratings IP66
Dimensions 11.8’’ × 3.4’’ × 3.35’’ (299.7 × 86.5 × 85.1mm)
Weight 2.7 lbs (1200g)
