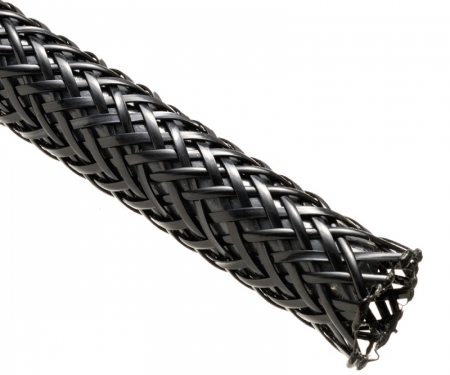

Gorilla Heavy Duty Braided Sleeving

3/8" - 3" Dia - Nylon 6-6 Heavy Duty Abrasion & Cut Resistance

Heavy Duty Gorilla Sleeving Features

  • Cuts Easily With Hot Knife
  • Highly Abrasion & UV Resistant
  • Expands Slightly for Easy Installation
  • Full Coverage for Full Protection
  • Operating Temps: -49°F to 302°F (-45°C to 150°C)
  • Innovative Flat Filament Construction
  • Resists Common Chemicals & Solvents
  • Will not Retain Moisture
  • RoHS Compliant
  • Melt Temp: 509°F/265°C
Click for More Details or Description

Require Splice Free? Please Call 1-877-284-7760

Inside Diameters Are Measured as Round Not Flat

Product Details

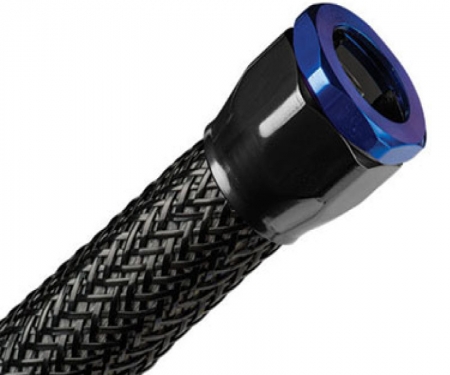

Gorilla Sleeve is engineered from flat, 50 mil wide filaments of tough and strong 6-6 Nylon to achieve a thick abrasion guard for use on hoses and cables exposed to harsh conditions. The product provides fuller coverage for increased resistance to abrasion and penetration, and still expands for easy installation over long lengths.

The braided construction allows moisture dissipate quickly to prevent rot and fungus.

Gorilla Sleeve provides protection, easy installation and long-lasting good looks on any application.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Expans. Range Standard Spool
Put-Ups
Colors Lbs/
100'
Min. Max. Bulk Shop
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
1 3/4"
2"
3"
NHN0.38BK
NHN0.50BK
NHN0.75BK
NHN1.00BK
NHN1.25BK
NHN1.50BK
NHN1.75BK
NHN2.00BK
NHN3.00BK
1/4"
3/8"
5/8"
7/8"
1"
1 1/4"
1 1/2"
1 3/4"
2 1/4"
1/2"
5/8"
1"
1 1/4"
1 1/2"
1 3/4"
2"
2 1/2"
3 1/2"
500'
500'
250'
250'
250'
100'
100'
100'
100'
100'
100'
50'
50'
50'
25'
25'
25'
25'
BK
BK
BK
BK
BK
BK
BK
BK
BK
1.00
1.40
2.10
2.20
2.50
3.40
4.00
4.40
6.50



Physical Properties
Monofilament Thickness (ASTM D-204) .020 Flat Filament
Flammability Rating
Recommended Cutting Hot Knife
Colors 1
Wall Thickness .05
Tensile Strength - Yarn (ASTM D-2265) lbs. 19
Abrasion Resistance Extremely High
Specific Gravity 1.12
Moisture Absorption % (ASTM D-570) 2.5



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML 1.10
CVCM .01
WVR .69
Smoke D-Max (ASTM E-662)
Outgassing High
Oxygen Index (ASTM D-2863) 22



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 1
Alipahtic Solvents 1
Chlorinated Solvents 1
Weak Bases 1
Strong Bases 2
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-L-7808) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 4
Strong Oxidants 4
Esters/Ketones 1
UV Light 1
Petroleum 2
Fungus (ASTM G-21) 1
Salts 1



Operating Temperatures
Minimum Continuous -76°F/-60°C
Maximum Continuous (MIL-I-23053) 302°F/150°C
Melt (ASTM D-2117) 509°F/265°C



Other Information
Halogen Free Yes
RoHS Yes
UL/CSA No
