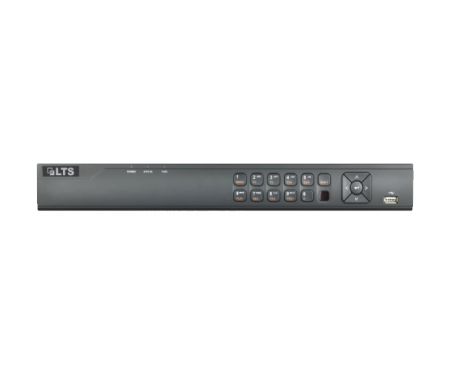

Platinum Pro Level 8 Channel HD-TVI 4.0 DVR

8 Channel Dvr, with Support up to 5mp HD-TVI input with 4K Display

Platinum Pro Level 8 Channel HD-TVI 4.0 DVR features

  • H.265/H.265+ 8 Channel Video Recorder
  • 4/1 RCA  I/O
  • 8 channels Support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
  • 8 channels support up to 5M HD-TVI input
  • Up to 2-ch 6 MP IP cameras input
  • Support Live View, Storage, Playback up to 8 HD-TVI / Analog Cameras + 2 IP Cameras
  • Up to 4K HDMI Video Output
  • CVBS Output
  • 2 SATA up to 16TB HDD
  • 2 USB 2.0
Click for More Details or Description

Product Details

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Recorder Series Platinum Series
Recorder Channel 8-Channel
Recorder Case 1U Case
Recorder Technology TVI DVR
Featured Product No
Specifications
VIDEO/AUDIO INPUT
Video Compression H.265+/H.265/H.264 Zip+/H.264
Video Input 8ch
BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
IP Input 2-ch, Up to 6 MP resolution
HDTVI input 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
Audio Compression G.711u
Audio Input 4-CH, RCA (2.0 Vp-p kΩ)
Two-Way Audio Input 1-CH, RCA (2.0 Vp-p kΩ)
VIDEO/AUDIO OUTUPUT
HDMI/VGA Output VGA: 1 -c h , 192 0 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz

HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Encoding resolution 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
CVBS output 1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480
Frame Rate Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate 32 Kbps-10 M bps
Audio Output 1-ch, RCA (Linear, 1 kΩ)
Audio Bit Rate 64 Kbps
Dual Stream Support
Stream Type Video, Video & Audio
Synchronous Playback 8ch
NETWORK
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DISK
SATA 2 SATA
Capacity Up to 8TB capacity for each disk
EXTERNAL INTERFACE
Network interface 1:10M / 100Mself-adapt ive Ethernet interface
Serial interface RS-4 85
USB Port 2 × USB 2.0
Alarm In/Out 8/4
GENERAL
Power supply DC12V
Consumption ≤ 20W
Working temperature -10 °C ~ +55 °C(14°F - 131°F)
Working humidity 10% ~ 90%
Chassis 1U
Dimensions (WxDxH) 380 × 320 × 45 mm (15.0 × 12.6 × 1.8 inch)
Weight ≤2 Kg (4.4 lb)
