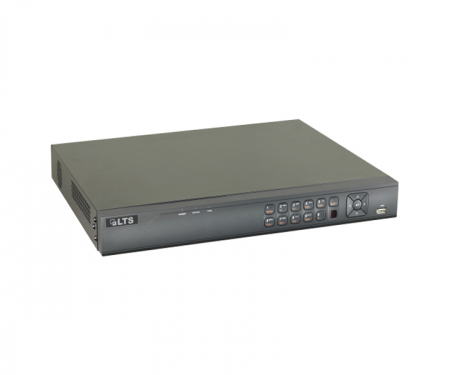

Platinum Pro Level 4 Channel HD-TVI 4.0 DVR

4 channel Dvr, with support up to 5mp HD-TVI input with 1080p display

0.0 / 5

(0)

Platinum Pro Level 4 Channel HD-TVI 4.0 DVR

  • 4 Channel Video Recorder H.265+
  • Support HD-TVI / AHD/ ANALOG / CVI / IP input (5-in-1)
  • 4 Channel support up to 5MP HD-TVI input
  • Up to 2-Ch 6MP IP Cameras input
  • Support Live View, Storage, Playback up to 4 HD-TVI/Analog Cameras + 2 IP Cameras
  • Up to 1080P (1920*1080) HDMI Video Output
  • CVBS Output
  • 1 SATA up to 8TB HDD
  • 2 USB 2.0 ports,
  • 1080P@30fps with LTS efficient mode on
See More Technical Specifications


Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Recorder Series Platinum Series
Recorder Channel 4-Channel
Recorder Case 1U Case
Recorder Technology TVI DVR
Featured Product No
Specifications
VIDEO/AUDIO INPUT
Video Compression H.265+/H.265/H.264 Zip+/H.264
Video Input 4ch
BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
IP Input 2-ch, Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
HDTVI input 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60
AHD input 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
Audio Compression G.711u
Audio Input 4-CH, RCA (2.0 Vp-p kΩ)
Two-Way Audio Input 1-CH, RCA (2.0 Vp-p kΩ)
VIDEO/AUDIO OUTUPUT
HDMI/VGA Output 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
Encoding resolution 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIFs
CVBS output 1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480
Frame Rate Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fp s (N)
Video Bit Rate 32 Kbps-10 M bps
Audio Output 1-ch, RCA (Linear, 1 kΩ)
Audio Bit Rate 64 Kbps
Dual Stream Support
Stream Type Video, Video & Audio
Synchronous Playback 4ch
NETWORK
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DISK
SATA 1 SATA
Capacity Up to 8TB capacity for each disk
EXTERNAL INTERFACE
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Serial interface RS-4 85 (half-duplex)
USB Port 2 × USB2.0
Alarm In/Out 4/1
GENERAL
Power supply DC12V
Consumption ≤ 10W
Working temperature -10 °C ~ +55 °C(14°F - 131°F)
Working humidity 10% ~ 90%
Chassis 1U
Dimensions (WxDxH) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight ≤1.6Kg (2.6 lb)
