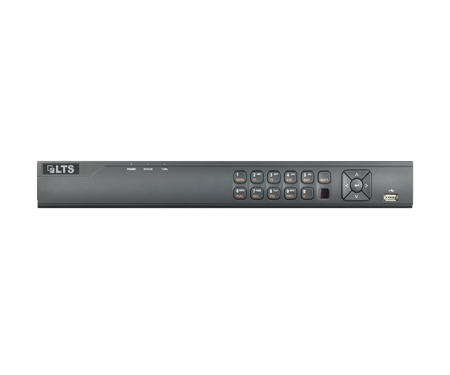

Platinum Pro Level 16 Channel HD-TVI 4.0 DVR

16 channel Dvr, with support up to 6mp HD-TVI input with 4k display

Platinum Pro Level 16 Channel HD-TVI 4.0 DVR features

  • H.265/H.265+ 16 Channel Video Recorder
  • 4/1 RCA  I/O
  • 16 channels support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
  • 16 channels support up to 5MP HD-TVI input
  • Up to 2-ch 6MP IP cameras input
  • Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
  • Up to 4k HDMI Video Output
  • CVBS Output
  • 2 SATA up to 16TB HDD
  • 2 USB 2.0
Click for More Details or Description

Product Details

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Recorder Series Platinum Series
Recorder Channel 16-Channel
Recorder Case 1U Case
Recorder Technology TVI DVR
Featured Product No
Specifications
VIDEO/AUDIO INPUT
Video Compression H.265+/H.265/H.264 Zip+/H.264
Video Input

16ch


BNC (1.0 Vp-p, 75 Ω), supporting coaxitron connection

IP Input  2-ch, Up to 6MP Resolution
HDTVI Input 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
Audio Compression  G.711u
Audio Input  4CH, RCA (2.0 Vp-p, 1 kΩ)
Two-Way Audio Input  1CH, RCA (2.0 Vp-p, 1 kΩ)
VIDEO/AUDIO OUTUPUT
HDMI/VGA Output

VGA: 1 -c h , 192 0 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz


HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Encoding resolution  5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
CVBS output 1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480
Frame Rate

Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)


Sub-stream: WD1/4CIF/CIF@25fps (P)/30fp s (N)

Video Bit Rate  32 Kbps-10 Mbps
Audio Output  1CH, RCA (Linear, 1 kΩ)
Audio Bit Rate 64 Kbps
Dual Stream  Support
Stream Type  Video, Video & Audio
Synchronous Playback  16CH
NETWORK
Remote Connections  128
Network Protocols  TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
HARD DISK
SATA  2 SATA
Capacity  Up to 8TB each
EXTERNAL INTERFACE
Network interface  1:10M / 100M self-adaptive Ethernet interface
Serial interface  RS-4 85 (half-duplex)
USB Port  Fr ont panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 16/4
GENERAL
Power supply DC12V
Consumption  ≤ 25W
Working temperature  -10 °C ~ +55 °C(14°F - 131°F)
Working humidity  10% ~ 90%
Chassis 1U
Dimensions (WxDxH)  380 × 320 × 45 mm (15.0 × 12.6 × 1.8 inch)
Weight  ≤2Kg (4.4lb)
