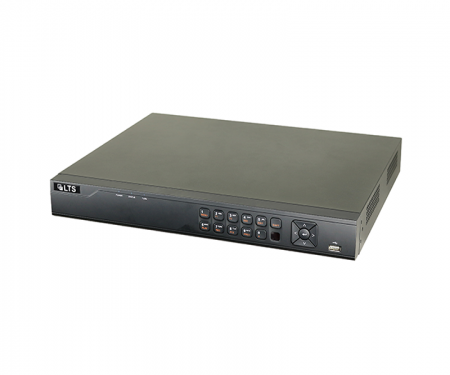

H.265/H.265+ Platinum Pro. Level 16 Channel HD-TVI DVR

16 channel Dvr, with support up to 6mp HD-TVI input with 1080p display

H.265/H.265+ Platinum Pro. Level 16 Channel HD-TVI DVR

  • 16 Channel Video Recorder H.265+
  • Support HD-TVI / AHD/ ANALOG / CVI / IP input (5-in-1)
  • 1-4 Channel support up to 3MP HD-TVI input
  • Up to 2-Ch 4MP IP Cameras input
  • Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
  • Up to 4K (3840X2160) HDMI Video Output
  • CVBS Output
  • 2 SATA up to 16TB HDD
  • 1 USB 2.0 port and 1 USB3.0 port
  • 1080P@30fps with LTS efficient mode on
Click for More Details or Description

Product Details

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Recorder Series Platinum Series
Recorder Channel 16-Channel
Recorder Case 1U Case
Recorder Technology TVI DVR
Featured Product No
Specifications
Model Name LTD8316K-ET
Video Compression H.265+
Audio Compression G.711u
IP Video Input 2-ch, Up to 4 MP resolution, supports H.265+/H.265/H.264 Zip+/H.264 IP cameras
HD-TVI Input

3 MP, 1080p30,1080p25, 720p60, 720p50,720p30,720p25
Note: The 3 MP signal input is only available for channel 1/2/3/4

Support HDCVI, AHD, 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
Simultaneous Playback 16CH
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI VGA Output

VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz

Encoding Resolution

When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

CVBS Output 1-ch, BNC (1.0 Vp-p, 75 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480
USB interface Front panel: 1 ×USB 2.0, Rear panel: 1 ×USB 3.0
Two Way Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the1st audio input)
Capacity 2 SATA/ Up to 8TB capacity for each disk
Casing 1U
Power supply 12 VDC
Consumption ≤ 25W
Operating Temperature -10 °C ~ +55 °C(14°F - 131°F)
Product Dimension 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Product Weight ≤2 kg (4.4 lb)
