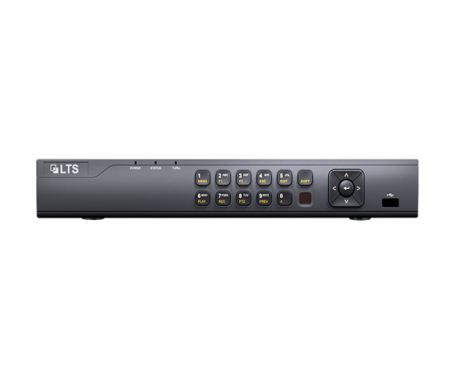

H.265/H.265+ Platinum Pro Level 8 Channel HD (Compact)

8 channel Dvr, with support up to 3mp HD-TVI input with 1080p display

H.265/H.265+ Platinum Pro Level 8- Compact features

  • Compact Case H.265/H.265+
  •  8 Channel Video Recorder
  • Support TVI/ AHD/ ANALOG/ CVI/ IP input (5 in 1)
  • 1st and 2nd channel support up to 3MP HD-TVI input
  • Support Live View, Storage, Playback up to 8 HD-TVI/ Analog Cameras + 1 IP Camera up to 4MP
  • Up to 1080P (1920*1080) HDMI Video Output
  • CVBS Output
  • 1 SATA up to 6TB each HDD
  • 2 USB 2.0
Click for More Details or Description

Product Details

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Recorder Series Platinum Series
Recorder Channel 8-Channel
Recorder Case 1U Case
Recorder Technology TVI DVR
Featured Product No
Model Name LTD8308K-ETC
Video Compression H.265+/H.265/H.264 Zip+/H.264
Audio Compression G.711u
IP Video Input 2CH, Up to 4MP resolution, supports H.265+/H.265/H.264 Zip+/H.264 IP cameras
HD-TVI Input

3MP, 1080P30,1080P25, 720P60, 720P50,720P30,720P25
Note: 3MP signal input is only available for channel 1/2

Support HDCVI, AHD, 1080P25, 1080P30, 720P25, 720P30
CVBS Onput 1-ch, BNC (1.0 Vp-p, 75 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480
Simultaneous Playback 8CH
Audio Onput 1-ch, RCA (Linear, 1 kΩ)

1 -ch , 19 20 × 1 080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz

CVBS Output 1-ch, BNC (1.0 Vp-p, 75 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480
Two Way Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the1st audio input)
Capacity Up to 6TB capacity for each disk
Casing 1U
Power supply DC 12V
Consumption ≤ 7.5W
Operating Temperature -10 °C ~ +55 °C(14°F - 131°F)
Product Dimension 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Product Weight ≤1.78Kg (3.9 lb)
