Notrax Diamond Stat™ Anti-Static Non-Slip Floor Mat 826 Series

Superior Durability And Traction | Grounding Cord Included

0.0 / 5

(0)

Notrax Diamond Stat™ Anti-Static Non-Slip Floor Mat Features

  • Available Color- Black
  • Electrically conductive heavy duty PVC diamond plate top surface provides superior durability and traction
  • Meets or exceeds requirements of ANSI/ESD S20.20 and per ANSI/ESD STM7.1
  • Resistance Point to Ground (Rtg): 1x 10⁴ to 1x 10⁶ ohms
  • Resistance Point to Point (Rtt): 1x 10⁴ to 1x10⁶ ohms
  • Redstop™ non-slip backing to reduce mat slippage
  • UniFusion™ bond guaranteed for the life of the mat
  • Beveled edges on all 4 sides
  • Certified by the NFSI (National Floor Safety Institute)
  • Grounding cord included (Required)
See More Technical Specifications


Notrax Diamond Stat™ is a conductive/anti-static mat designed to absorb static electricity. The mat drains static electricity from the worker keeping sensitive circuitry from being damaged. The durable vinyl diamond-plate design provides non-directional traction and is easy to clean. Diamond Stat™ top surface is combined with a rubber foam base utilizing Notrax® exclusive UniFusion™ technology. This virtually eliminates the possibility of de-lamination. Ergonomic fatigue-reducing rubber foam base that provides superior comfort and support eliminates the slipping and sliding of floor mats on smooth surface flooring such as vinyl composite tile, painted or epoxy coated concrete, vinyl sheet flooring, carpet, and ceramic tile.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Model No 826
Available Colors Black
Overall Thickness 9/16
Roll Sizes 2'x 75'  3'x 75'  4'x 75'
Custom Lengths 2', 3' and 4' widths (up to 75' long)
Standard sizes 2'x 3'  3'x 5'  3'x 12'
Group Ergonomic, Anti-fatigue & Safety Matting
Environment Dry Areas
Special Characteristics
Free of DOP, free of DMF, free of ozone depleting substances, free of silicone and free of heavy metals
Recommended Use

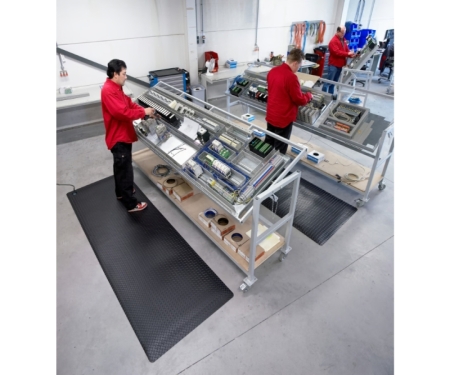

For placement in ESD assembly lines, picking, packing and logistics warehouses, individual work stations.
Special Remarks

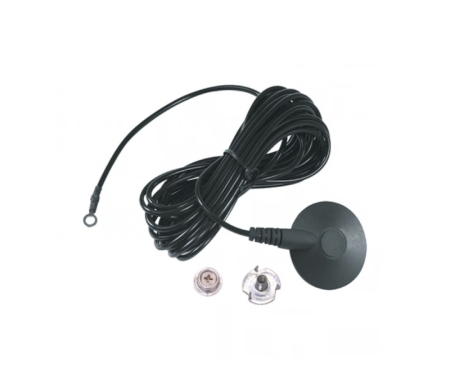

For maximum effectiveness, we highly recommend that the end-user properly attaches the grounding cord which is included at no charge. It easily snaps into a grommet which is installed in the mat at our factory.
Surface ndustrial Diamond Plate
Usage Intensity Heavy duty
Installation No installation required
Cleaning Remark Use ESD mat cleaner.
Material Specifications Static dissipative PVC
Backing Closed Cell Rubber
Process Lamination
Weight Lbs/sqft 1.3
Fire Rating US Pass
REACH Compliant
Reach compliant (Registration, Evaluation, Authorization and Restriction of Chemicals).
Anti-Fatigue Rating Best
Slip Resistance Rating Best
Wear Resistance Rating Best
