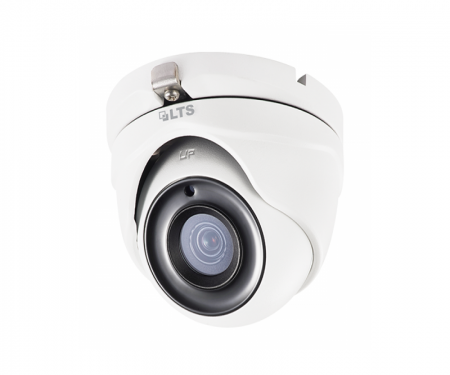

Platinum Turret HD-TVI Camera 5MP

5MP High Definition w/ Full HD1080p Display from a 2.8mm Fixed Lens

0.0 / 5

(0)

Platinum Turret HD-TVI Camera 5MP Features

  • High Definition Turret 5MP HD-TVI Camera
  • 2.8mm Fixed Lens
  • 2560x1944@20fps
  • 0.01 Lux, Smart IR
  • 2 Matrix IR 2.0 LED up to 131ft
  • UTC Control to OSD Menu
  • DC 12V
  • IP67
See More Technical Specifications


Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series Platinum Series
Camera Resolution 5MP
Camera Technology HD-TVI
Camera Housing Turret
Featured Product No
Specifications
CAMERA
Image Sensor 1/2.7" CMOS
Signal System NTSC/PAL
Effective Pixels 2560(H)*1944(V)
Min. Illumination 0.01 Lux, 0 Lux with IR
Lens 2.8mm; FoV: 94°
Shutter Speed 1/30 (1/25) to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944@20fps
HD Video Output 1 HD-TVI Output
S/N Ratio More than 62dB
MENU
AGC Support
D/N Mode Color/ BW/ SMART
White Balance ATW/ MWB
BLC Support
Function DNR, Mirror, SMART IR
GENERAL
Working Temperature
/Humidity
-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 5W
Weather Proof Ratings IP67
IR Range Up to 131ft (40m)
Dimensions 4.3 ”×3.7” (110.0×93.2mm)
Weight 0.8 lbs (350g)
