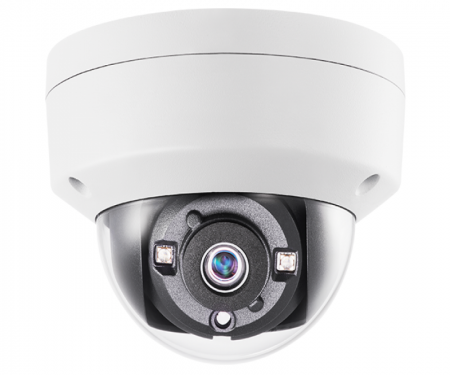

Platinum Starlight Dome HD-TVI Camera 5MP

5MP High Definition w/ Full HD Display from a 2.8mm Fixed Lens

Platinum Starlight Dome HD-TVI Camera 5MP Features

  • High Definition Dome 5MP HD-TVI Camera
  • 2.8mm Fixed Lens
  • 2560x1944@20fps

  • 0.008 Lux@F1.2
  • IP67
  • 2 Matrix IR 2.0 LED up to 65ft
  • UTC Control to OSD Menu
  • IK10 Vandal-Proof Dome
  • 3-Axis Easy Installation
  • Smart IR
  • DC 12V
Click for More Details or Description

Must be used with HD-TVI 4.0 DVR

Product Details

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series Platinum Series
Camera Resolution 5.0MP
Camera Technology HD-TVI
Camera Housing Dome
Featured Product No
Specifications
Camera
Image Sensor 1/2 .7 "CMOS
Signal System NTSC/PAL
Effective Pixels 2560(H)*1944(V)
Min. Illumination 0.008 Lux , 0 Lux with IR
Shutter Speed 1/30 (1/25)s to 1/50,000 s
Lens 2.8mm
Angle of View: 91°
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944@20fps
HD Video Output 1 HD-TVI Output
S/N Ratio More than 62dB
Menu
AGC Support
D/N Mode Auto/ Color/BW
White Balance ATW/MWB
BLC Support
Function Brightness,Sharpness,Digital noise reduction,Mirror, Smart IR
General
Working Temperature
/Humidity
-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 3W
Impact Protection IK10
Weather Proof Ratings IP67
IR Range Up to 65ft (20m)
Impact Protection IK10
Dimensions 4.4 ”×3.3” (111.0×82.5 mm)
Weight 0.8lb(350g)
