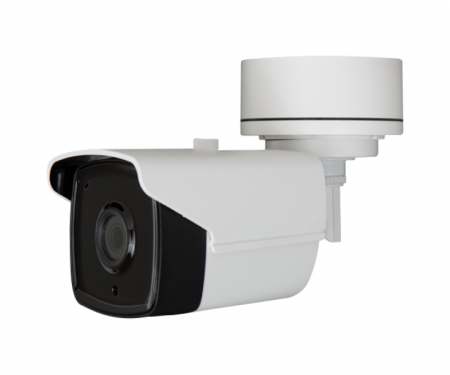

Platinum Starlight Bullet HD-TVI Camera 5MP

5MP High Definition w/ Full HD Display from a 2.8mm Fixed Lens

0.0 / 5

(0)

Platinum Starlight Bullet HD-TVI Camera 5MP Features

  • High Definition Bullet 5MP HD-TVI Camera
  • 2.8mm Fixed Lens
  • 2560x1944@20fps
  • 0.008 Lux@F1.2
  • IP67
  • 2 Matrix IR 2.0 LED up to 131ft
  • UTC Control to OSD Menu
  • Smart IR
  • DC 12V
  • Junction Box Included
See More Technical Specifications

Must be used with HD-TVI 4.0 DVR


Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series Platinum Series
Camera Resolution 5.0MP
Camera Technology HD-TVI
Camera Housing Bullet
Featured Product No
Specifications
CAMERA
Image Sensor 1/2 .7 "CMOS
Signal System NTSC/PAL
Effective Pixels 2560(H)*1944(V)
Min. Illumination 0.008 Lux , 0 Lux with IR
Lens 2.8mm, Angle of View: 91°
Shutter Speed 1/30 (1/25) to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944@20fps
HD Video Output 1 HD-TVI Output
S/N Ratio More than 62dB
MENU
AGC Support
D/N Mode Auto/ Color/BW
White Balance ATW/ MWB
BLC / 3D DNR Support
Function Brightness,Sharpness,Digital noise reduction,Mirror, Smart IR
GENERAL
Working Temperature
/Humidity
-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 3.5W
Weather Proof Ratings IP67
IR Range Up to 131ft
Dimensions 3.4" x 3.2" x 8.7" (86.7 x 81.6 x 226.0mm)
Weight 1.5 lbs (680g)
