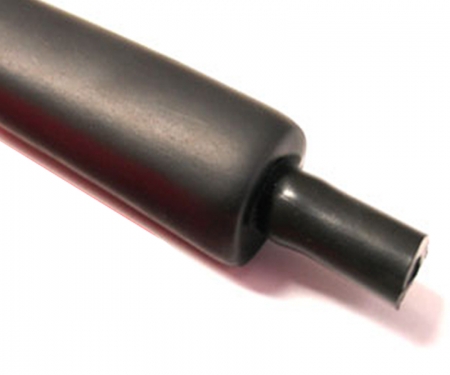

4:1 Dual Wall Heat Shrink Tubing

Available in 3/16" - 2" Diameters - 4 FT Sticks & 200 Ft Rolls

4:1 Dual Wall Heat Shrink Features

  • Made From Polyolefin Material
  • Shrinks to 1/4 Original Size
  • Meets Requirements of AMS-DTL-23053/4 Class 3
  • UL 224 VW-1 & CSA OFT recognized (Jacket only)
  • Crosses to Sumitomo W3B2(4X), Raychem ATUM4X, LG GSH4635WT
Click for More Details or Description

Please Note: Our Diameters for Heat Shrink Tubing are measured as ROUND TUBE, NOT FLAT.

Product Details

This versatile dual walled adhesive-lined heat shrink tubing is ideally used where protection of cables and wires from moisture is important. Applied with a heat gun, tubing will adhere tighlty to whatever wire or component is being protected. Tubing will shrink to 1/4 of it's orginal size. Typically used for insulation, identification of wires, strain relief and  bundling of wires. Manufactured to meet SAE AMS-DTL-23053/4 Class 3  specifications. Comes in 4' sticks and 200 ft spools which can be easily cut to shorter lengths as required.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

  • Shrink ratio: 75% or more in the radial direction
  • Continuous operating temperature: -55°C to 135°C
  • Flammability: UL VW-1, CSA OFT, -F-MARK
  • Very high heat resistance
  • High resistance to chemicals and oils
  • Cross Reference: Raychem RP-4800, Alpha FIT 421, LG GSHS-4635
  • Color: Black
  • Available in 4' Lengths
  • Mil Spec # AMS-DTL- 23053/5

Expanded

Recovered

Nominal

Inside Diameter

Inside Diameter

Minimum Wall Thickness

Size

in

mm

in

mm

in

mm

1/2"

0.47

12

0.118

3

0.037

0.96

3/4"

0.75

19

0.180

4.5

0.037

0.96

1"

1

25.4

0.276

7

0.037

0.96

1 1/4"

1.26

32

0.315

8

0.059

1.5

1 1/2"

1.5

38

0.374

9.5

0.059

1.5
